    Total Chlorine Sensor Membrane Covered Water Quality Sonde 4 ~ 12pH


    Total Chlorine Sensor Membrane Covered Water Quality Sonde 4 ~ 12pH

    Descriptions

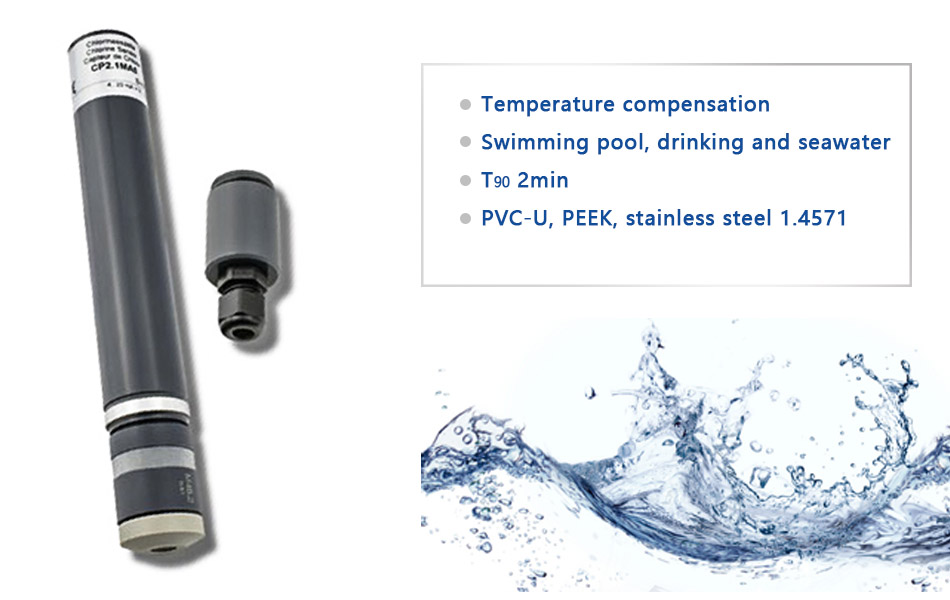

    The measuring system of the water quality sonde chlorine sensor CP2.1 and CP3 is membrane-covered, amperometric 3-electrode system. It is used for the measurement of total chlorine with greatly reduced pH-dependence, also in seawater. The measurands of the chlorine sensor water quality sonde is NaClO (sodium hypochlorite), Ca(ClO)2 (calcium hypochlorite), Cl2 (chlorine gas), electrolytically generated chlorine.


    The connection of the chlorine sensor CP2.1 and CP3 is 2-pole terminal, M12 male for mA-version or Modbus RTU with M12 male. In addition, we should pay attention to the interferences ClO2 is registered with 100 %, O3 is measured with a slope of approx. 130% (factor 1.3 with regard to the chlorine slope).

    Specifications

    Product NameChlorine Sensor Water Quality Sonde
    Product ModelChlorine Sensor CP2.1 and CP3
    pH Range4 ~ 12(linear decrease with approx. 5 % per increasing pH-unit)
    Pressure Range0 ~ 0.5bar,no pressure surges or fluctuations
    Temperature Range

    0~ 45℃

    Calibration

    Via analytical chlorine determination by DPD-4 method (DPD-1 + DPD-3)

    Response Time
    T90 2 min.

    Connection

    mA - version 2-pole terminal, M12 male or Modbus RTU with M12 male

    Shaft Length

    standard 175 mm, and up to 220 mm in length (mA - Version)

    Material

    PVC-U, PEEK, stainless steel 1.4571, microporous hydrophilic membrane

    Flow Rate

    30 L/h, low flow dependence

    Applications Of The Chlorine Sensor


    Swimming pool, drinking and seawater, surfactants are partially tolerated; special electrolyte for the use in seawater.

    Advantages Of The Chlorine Sensor
    The temperature compensation of the chlorine sensor water quality sonde is automatical, by an integrated temperature sensor.

    Free chlorine exists in a range of forms, and sometimes simultaneously in several forms. The composition will depend on the pH of the water in which it is found. The membranes and electrolytes enable measurement to take place in various pHs and, in many cases, even where the pH value fluctuates. This water quality sonde is membrane-covered, amperometric 3-electrode system, it can be used in the pH range from pH 4.0 to pH 12.0.

    Scope Of Supply

    Water quality sonde chlorine sensor CP2.1 and CP3: sensor, membrane cap, electrolyte

    Ordering Data:

    Type

    Measuring range(ppm)

    Resolution(ppm)

    Output signal

    Power supply

    Item number

    CP3H-M0c

    0.005 ~ 2.000

    0.001

    Modbus RTU

    9 ~ 30 V DC
    20 ~ 56 mA

    3326960

    CP3N-M0c

    0.05 ~ 20.00

    0.01

    3326961

    CP2.1MA0.5

    0.05 ~ 0.500.01

    4 ~ 20 mA

    12 ~ 30 VDC
    RL: 50 ~ 900 Ω

    3326038

    CP2.1MA2

    0.01 ~ 2.00

    0.01

    3326027

    CP2.1MA5

    0.01 ~ 5.00

    0.01

    3326037

    CP2.1MA10

    0.01 ~ 10.00

    0.01

    3326036

    CP2.1MA20

    0.01 ~ 20.00

    0.01

    3326019

    CP2.1MA0.5-M120.05 ~ 0.500.014 ~ 20 mA

    12 ~ 30 VDC
    RL: 50 ~ 900 Ω


    3426500

    CP2.1MA2-M12

    0.01 ~ 2.00

    0.01

    3426501

    CP2.1MA5-M12

    0.01 ~ 5.00

    0.01

    3426502

    CP2.1MA10-M12

    0.01 ~ 10.00

    0.01

    3426503

    CP2.1MA20-M12

    0.01 ~ 20.00

    0.01

    3426504

    If you are interested in the water quality sonde chlorine sensor CP2.1 and CP3, please contact us.
