    30L / H Hydrogen Peroxide Sensor Water Quality Probe Surfactant Resistant Membrane

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : WP7
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    30L / H Hydrogen Peroxide Sensor Water Quality Probe Surfactant Resistant Membrane


    Hydrogen Peroxide Sensor Water Quality Probe With Surfactant Resistant Membrane


    Descriptions

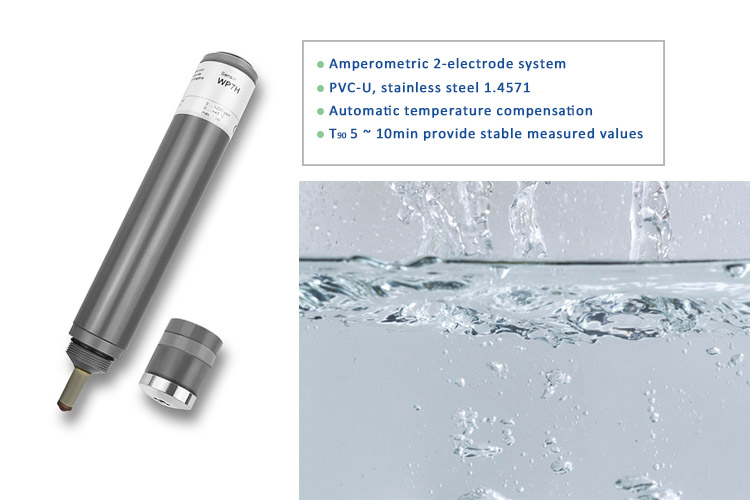

    The measuring system of the water quality probe hydrogen peroxide sensor WP7 is membrane-covered, amperometric 2-electrode system. It is used for the measurement of hydrogen peroxide. The pH range of the hydrogen peroxide probe is 2 ~ 11pH. The flow rate of the water quality probe is about 15-30L/h, small flow rate dependence is given. The material of the hydrogen peroxide sensor is PVC-U, stainless steel 1.4571. The response time is T90 about 5 ~ 10 min. You can calibrate the sensor via analytical determination by DPD-method at the controller.


    Specifications

    Product NameHydrogen peroxide sensor
    Product ModelHydrogen peroxide sensor WP7
    pH Range2 ~ 11
    Pressure Range0 ~ 1bar, no pressure surges or fluctuations
    Temperature Range

    0~ 45℃

    Run-in-time

    First start-up about 5h

    Response Time
    T90 5 ~ 10min.

    Connection

    M12 male, mA-version 2-pole terminal or M12 male

    Shaft Length

    Standard 175 mm, and up to 220 mm in length (mA-Version)

    Material

    PVC-U, stainless steel 1.4571

    Flow Rate

    30 L/h

    Absence Of Disinfectant
    Max. 24 h

    Applications Of The Hydrogen Peroxide Sensor


    All kinds of water treatment, also seawater (e. g. bottle washing machine, CIP-plants). The membrane system is mechanical resistant. Surfactants (tensides) are partially tolerated.


    Advantages Of The Hydrogen Peroxide Sensor
    The water quality probe hydrogen peroxide sensor WP7 is used for the measurement of hydrogen peroxide, with surfactant-resistant membrane. About the interference: Cl2 must not be existent, Peroxyacetic acid C2H4O3 must not be existent, O3 must not be existent, sulfides must not be existent, phenols aqueous solution >3 % must not be existent.
    The temperature compensation of hydrogen peroxide sensor WP7 water quality sonde is automatical, by an integrated temperature sensor. Sudden temperature changes must be avoided.


    Scope Of Supply


    Water quality probe hydrogen peroxide sensor WP7: sensor, membrane cap, electrolyte.


    Ordering Data:

    Type

    Measuring range(ppm)

    Resolution(ppm)

    Output signal

    Power supply

    Item number

    WP7H - M0c

    0.0 ~ 200.0

    0.1

    Modbus RTU

    9 ~ 30 V DC
    20 ~ 56 mA

    3226130

    WP7N - M0c

    0 ~ 2000

    1

    3226131

    WP7MA-CC

    0.0 ~ 200.0

    0.14 ~ 20mA

    12 ~ 30 VDC

    RL 50 ~ 900Ω

    3326081

    WP7MA-D

    0.0 ~ 500.0

    0.1

    3326075

    WP7MA-M

    0.0 ~ 1000

    1

    3326099

    WP7MA-MM

    0 ~ 2000

    1

    3326074

    WP7MA-XM

    0 ~ 10000

    10

    3326072

    WP7MA-CC-M12

    0.0 ~ 200.0

    0.14 ~ 20mA

    12 ~ 30 VDC

    RL 50 ~ 900Ω

    3226100

    WP7MA-D-M12

    0.0 ~ 500.0

    0.1

    3226101

    WP7MA-M-M12

    0.0 ~ 1000

    1

    3226102

    WP7MA-MM-M12

    0 ~ 2000

    1

    3226103

    WP7MA-XM-M12

    0 ~ 10000

    10

    3226104


    If you are interested in the water quality probe hydrogen peroxide sensor WP7, please contact us.
