    4 ~ 12pH Chlorine Sensor Water Quality Sonde For Fresh Water Seawater

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : CC1
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    4 ~ 12pH Chlorine Sensor Water Quality Sonde For Fresh Water Seawater


    4 ~ 12pH Chlorine Sensor Water Quality Sonde For Fresh Water And Seawater


    Descriptions

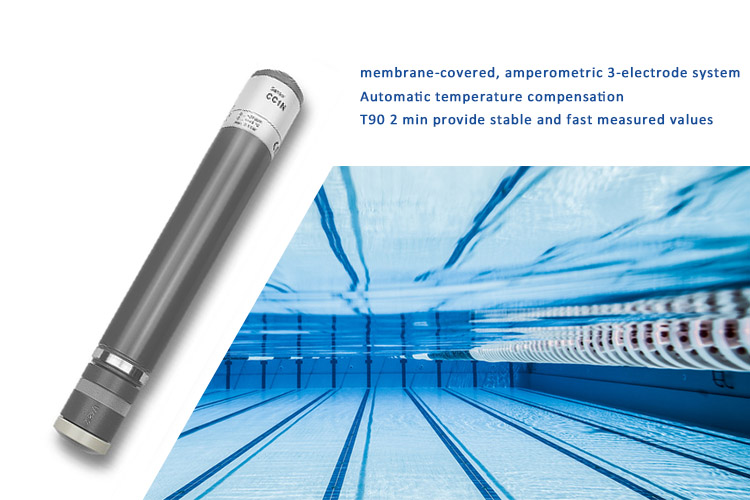

    The chlorine sensor uses membrane-covered, amperometric 3-electrode system. The water quality sonde is used for the measurement of free chlorine on the basis of iso-cyanuric acid, also in seawater.


    The measurands of the chlorine sensor water quality sonde is NaClO (sodium hypochlorite), Ca(ClO)2 (calcium hypochlorite), Cl2 (chlorine gas), electrolytically generated chlorine, and organic combined chlorine based on iso-cyanuric acid (tested up to an iso- cyanuric acid concentration of 500 mg/l). The connection of the chlorine sensor is 2-pole terminal, M12 male for mA-version or Modbus RTU with M12 male.


    Specifications

    Product NameChlorine Sensor Water Quality Sonde
    Product ModelChlorine Sensor CC1
    pH Range4~12
    Pressure Range0~0.5bar, no pressure surges or fluctuations
    Temperature Range

    0~45℃ (no ice crystals in measurement water)

    Calibration

    via analytical chlorine determination by DPD-1 method

    Response Time
    T90 2 min.

    Connection

    mA - version 2 - pole terminal, M12 male or Modbus RTU with M12 male

    Shaft Length

    standard 175 mm, and up to 220 mm in length (mA - Version)

    Material

    PVC-U, PEEK, stainless steel 1.4571, microporous hydrophilic membrane

    Flow Rate

    30 L/h, low flow dependence


    Advantages Of The Chlorine Sensor
    Systematic disinfection is an essential step in water treatment and legally required in many areas to protect people and systems from illness or damage. The chlorine sensor water quality sonde helps to achieve a safe and efficient disinfection by providing stable and fast measured values.
    The temperature compensation is automatical, by an integrated temperature sensor. The chlorine sensor CC1 water quality sonde can greatly reduce pH dependence.

    In addition, we should pay attention to the interferences ClO2 is 100 % detected, O3 is detected.


    Applications Of The Chlorine Sensor


    Fresh water and seawater; surfactants are tolerated in part; a special electrolyte is used for seawater.


    Scope Of Supply


    Water quality sonde chlorine sensor CC1: sensor, membrane cap, electrolyte for use in freshwater use.


    Ordering Data:

    Type

    Measuring range(ppm)

    Resolution(ppm)

    Output signal

    Power supply

    Item number

    CC1H-M0c

    0.005~2.000

    0.001

    Modbus RTU

    9~30 V DC
    20~56 mA

    3426610

    CC1N-M0c

    0.05~20.00

    0.01

    3426611

    CC1MA2

    0.01~2.00

    0.01

    4~20 mA

    12~30 VDC
    RL: 50~900 Ω

    3326094

    CC1MA5

    0.01~5.00

    0.01

    3326096

    CC1MA10

    0.01~10.00

    0.01

    3326095

    CC1MA20

    0.01~20.00

    0.01

    3326107

    CC1MA2-M12

    0.01~2.00

    0.014~20 mA

    12~30 VDC
    RL: 50~900 Ω

    3426615

    CC1MA5-M12

    0.01~5.00

    0.01

    3426616

    CC1MA10-M12

    0.01~10.00

    0.01

    3426617

    CC1MA20-M12

    0.01~20.00

    0.01

    3426618


    If you are interested in the water quality sonde chlorine sensor CC1, please contact us.
