    11pH Water Quality Sonde Ozone Sensor For The Measurement Of Dissolved Ozone

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : OZ1.2
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    11pH Water Quality Sonde Ozone Sensor For The Measurement Of Dissolved Ozone


    Water Quality Probe 11pH Ozone Sensor For The Measurement Of Dissolved Ozone


    Descriptions


    Ozone sanitizes the water, rapidly destroying any microbiological contamination and preventing associated particle generation. The measuring system of the water quality probe ozone sensor OZ1.2 is membrane-covered, amperometric 2-electrode system. It is used for the measurement of dissolved ozone in water.


    The connection of the sensor is 2-pole terminal, M12 male for mA-version or Modbus RTU with M12 male. The pH range of the ozone probe is 2 ~ 11pH. The measuring water temperature range is 0 ~ 45℃, and the ambient temperature range is from 0℃ to 55℃. The flow rate of the water quality sonde is about 15-30L/h, small flow rate dependence is given.


    Specifications

    Product NameOzone sensor water quality probe
    Product ModelOzone sensor OZ1.2
    pH Range2 ~ 11
    Pressure Range0 ~ 1bar, no pressure surges or fluctuations
    Temperature Range

    0~ 45℃

    Run-in-time

    First start-up about 1h

    Response Time
    T90 15sec.

    Connection

    mA - version 2-pole terminal, M12 male or Modbus RTU with M12 male

    Shaft Length

    Standard 175 mm, and up to 220 mm in length (mA - Version)

    Material

    PVC, semipermeable membrane

    Flow Rate

    30 L/h,low flow-dependence

    Absence Of Disinfectant
    Max. 24 h

    Applications Of The Ozone Sensor

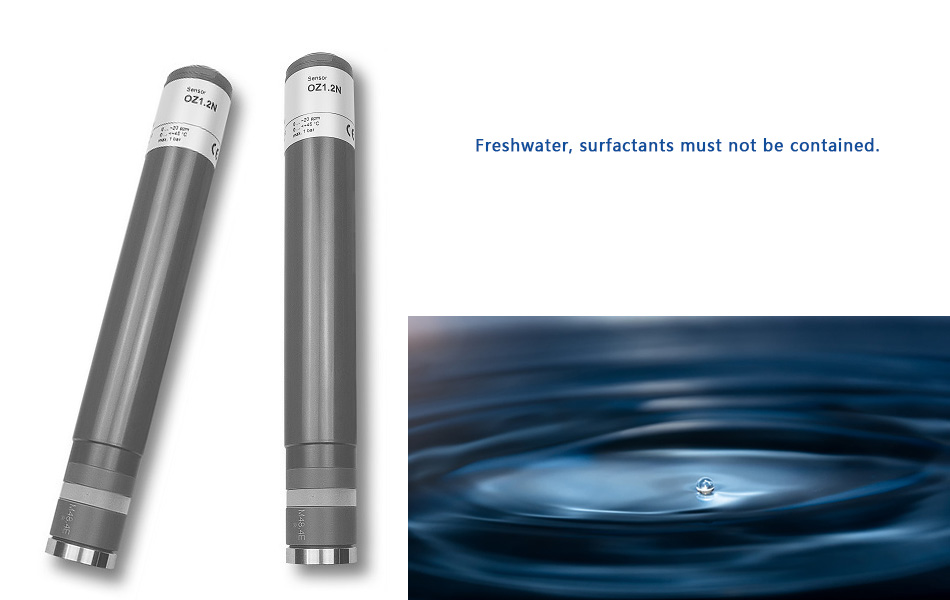

    Freshwater, surfactants must not be contained.


    Advantages Of The Ozone Sensor

    The water quality probe ozone sensor OZ1.2 can be used in Swimming pool water, drinking water, service water, process water. The water must not contain any surfactants (tensides).

    The temperature compensation of the ozone sensor OZ1.2 water quality sonde is automatical, by an integrated temperature sensor. Sudden temperature changes must be avoided.
    It isn't necessary to adjust the zero point. The response time of the sensor is T90 15seconds. About the interference we find that Cl2 is measured with factor 0.03 of its measuring value, ClO2 is measured with factor 0.7 of its measuring value.


    Scope Of Supply


    Water quality probe ozone sensor OZ1.2: sensor, membrane cap, electrolyte.

    Ordering Data:

    Type

    Measuring range(ppm)

    Resolution(ppm)

    Output signal

    Power supply

    Item number

    OZ1.2H-M0c

    0.005 ~ 2.000

    0.001

    Modbus RTU

    9 ~ 30 V DC
    20 ~ 56 mA

    3426530

    OZ1.2N-M0c

    0.05 ~ 20.00

    0.01

    3426531

    OZ1.2MA0.5

    0.001 ~ 0.500

    0.001

    4 ~ 20 mA

    12 ~ 30 VDC
    RL: 50 ~ 900 Ω

    3426550

    OZ1.2MA2

    0.01 ~ 2.00

    0.01

    3426551

    OZ1.2MA5

    0.01 ~ 5.00

    0.01

    3426552

    OZ1.2MA100.01 ~ 10.000.013426553
    OZ1.2MA200.01 ~ 20.000.013426554

    OZ1.2MA0.5-M12

    0.001 ~ 0.500

    0.0014 ~ 20 mA

    12 ~ 30 VDC
    RL: 50 ~ 900 Ω


    3426520

    OZ1.2MA2-M12

    0.01 ~ 2.00

    0.01

    3426521

    OZ1.2MA5-M12

    0.01 ~ 5.00

    0.01

    3426522

    OZ1.2MA10-M120.01 ~ 10.000.013426523
    OZ1.2MA20-M120.01 ~ 20.000.013426524


    If you are interested in the water quality probe ozone sensor OZ1.2, please contact us.
