    14pH Accurate PH Meter PH ORP Analyzer Industrial Process Water Treatment

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : APX1-C2A/C2D
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    14pH Accurate PH Meter PH ORP Analyzer Industrial Process Water Treatment


    14pH Accurate PH Meter For Water Treatment And Industrial Process

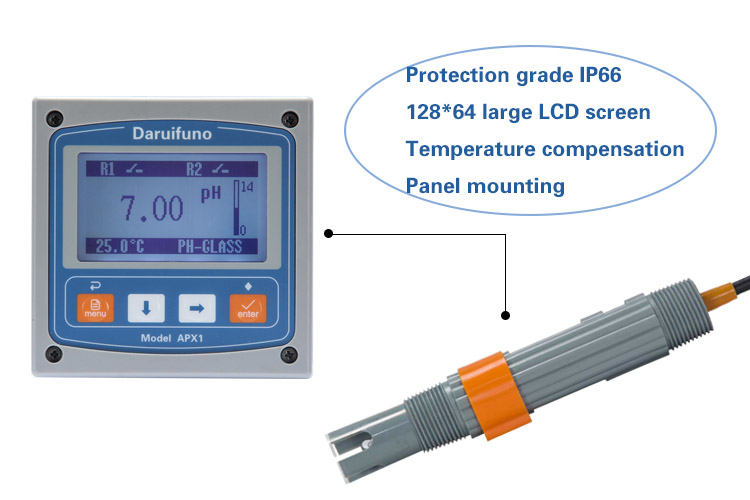

    DRFN’s pH meters are precise instruments for the measurement and control of pH and mV (ORP). Two output relays are provided on the pH controllers for close/open control. There are three types of electrodes for the meter, namely the pH glass electrode, pH antimony electrode, and the ORP electrode.


    Introduction Of The PH Meter


    • 2 high-precision 0/4~20mA current output;

    • 2 settable SPST multifunction relays;
    • A two-wire RS485 interface;

    • 128*64 large screen graphic dot matrix LCD screen;
    • The protection grade of the housing is IP66;
    • Shortcut keys to perform necessary daily maintenance without entering the menu;

    • Menu passwords can be set for easy hierarchical management;

    • Power off protection, indefinite retention of parameters;

    • The communication protocol is Modbus RTU.


    Parameters


    Product Name

    PH Meter

    Product ModelAPX1-C2A/C2D
    Software Version

    DRFN PH Analysis software V1.0

    Sensor pH Input

    Glass pH sensor

    Sensor Temperature Input

    PT1000 or NTC10K(B)

    pH Range

    -2~16pH

    ORP Range± 2000mV
    Temperature Range

    -10~150℃ /14~302℉

    Resolution

    0.01pH / 1mV/ 0.1℃

    Accuracy

    PH:±0.02 pH /ORP:±2 mV

    Stability

    0.05% of the measurement range per 24 hours, no accumulation

    Sensor Diagnosis

    Display images on the screen

    Analog Current Output

    2 settable 0/4~20mA active current loop output, maximum load 1000Ω

    Relay Control

    2 settable SPST relays, maximum load 3A / 250VAC

    Digital Communication

    Two-wire RS485 interface, communication protocol: MODBUS RTU

    Screen Display

    128 * 64 LCD

    Operating Environment

    0~60℃, RH< 95%

    Storage Environment

    -20~70℃, RH < 55%

    Power Supply100~240V AC or 18-36V DC
    Power Consumption3 W

    Shell Material

    Enhanced ABS

    Dimension

    100×100×120 mm (hole size 92*92mm)

    Weight500g

    Mounting Method

    Panel installation

    Electrical Interface

    The back end of the instrument reserved 3 M12*1.5 gland


    Advantages Of The PH Meter


    1. The user can choose whether the displayed data is timely response or smooth response by adjusting the display rate according to observation habits.


    2. The pH meter has a temperature compensation function, which can not only compensate the temperature of the test sample through the temperature sensor but also detect the working temperature of the instrument. When the working temperature of the instrument changes, it compensates for the hardware changes due to temperature drift. This patented technology makes the test results more accurate.


    Applications Of The PH Meter


    Water treatment monitoring: Drinking water, surface water, water quality, groundwater, swimming pool, etc.


    Industrial process monitoring and dosing control management: Chemical, petroleum, paper, food and medicine, electroplating, PCB manufacturing, etc.


    Ordering Information


    Model

    Power

    APX1-C2A

    AC: 100 ~240V

    APX1-C2D

    DC: 18 ~ 36V


    If you are interested in the product PH/ORP meter APX1-C2A/C2D, please contact us.
