    ±2000mV IP66 Industrial Online PH ORP Meter For Continuous Wastewater Monitoring

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : APX1-C1A
    Certification : CE
    Price : Negotiable
    Payment Terms :
    Supply Ability : 100 Unit/Week
    Delivery Time : 7-10 Working Days
    • Product Details
    • Company Profile

    ±2000mV IP66 Industrial Online PH ORP Meter For Continuous Wastewater Monitoring

    ±2000mV IP66 Industrial Online PH ORP Analyzer For Continuous Wastewater Monitoring


    Brief introduction


    PH ORP analyzer belongs to the industrial online PH ORP meter/analyzer, not only to meet the continuous measurement and display functions, but also to achieve signal output and control functions.

    PH/ORP analyzer can be connected to a variety of traditional pH/T or ORP combination electrodes. It has the patented temperature detection and temperature drift compensation technology.


    PH/ORP analyzer offers a wide range of output configurations to accommodate the different needs of cost and performance.


    PH/ORP analyzer are available in a variety of dimensions to meet a wide range of installation methods, while also providing the necessary installation accessories.

    Applications of Online PH ORP analyzer


    Industrial process monitoring: chemical,petroleum,paper,food,medicine,electroplating,PCB manufacture.


    Technical Parameters of Online PH ORP analyzer


    ModelAPX1-C1A
    Software VersionDRFN PH Analysis software V1.0.
    Sensor Input PHGlass PH sensor
    Sensor Input ORPRedox sensor (platinum/gold sensor)
    Sensor Input TEMPNTC10K
    Range/ Resolution PH2~16pH / 0.01pH
    Range/ Resolution ORP±2000mV / 1mV

    Range/ Resolution

    Measure Temperature

    -10~150℃ / 0.1℃(14~302℉ / 0.1℉)
    Performance Accuracy0.1% of span or PH: ±0.02pH /ORP: ±2mV, select larger one.
    Performance Stability0.05% of span every 24 hours, no accumulation.
    Performance RepeatabilityBetter than 0.1% of span
    Relay Control2 SPST relays can be set: PH/OPR alarm, water temperature alarm, electrode cleaning cycle control; the maximum load is 3A/250VAC.
    Analog Current Output0/4 ~ 20mA ; Current accuracy 0.00025 (16 bits); Maximum load 1000 Ω.
    Working EnvironmentOperating 0~60 ºC; storage -20~70 ºC; relative humidity < 95% RH (no condensation).
    Overall Dimensions100*100*120mm Panel hole dimension 92*92mm
    PowerAC power supply 100~240VAC
    Power Consumption3W
    Instrument WeightAbout 500g

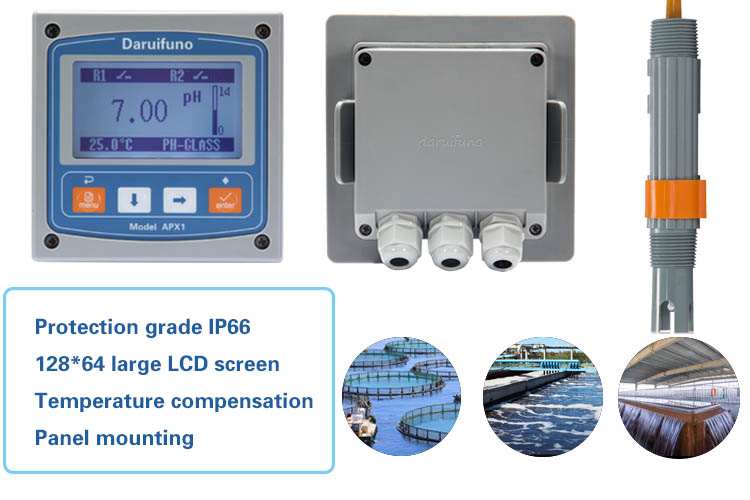

    More picture of Online PH ORP analyzer
