    -2 ~ 16PH 1000 Ω Two SPST Relays Online PH ORP Analyzer For Aquaculture Water Treatment


    -2~16pH 1000 Ω Two SPST Relays Online PH ORP Tester For Aquaculture Water Treatment


    Brief introduction


    Usually the PH tester can be connected to the ORP electrode to detect the redox charge of the aqueous solution and is usually labeled PH/ORP tester


    ORP measurements are not controlled by temperature, so ORP electrodes do not require temperature compensation. In case the oxidation level is high (the ORP value is high), platinum electrodes are recommended, and conversely gold electrodes are recommended. Both inert electrodes are usually used as reference electrodes for ORP measurements.


    The PH/ORP tester can be connected to a variety of traditional PH/T or ORP combination electrodes. It has the patented temperature detection and temperature drift compensation technology


    Applications of Online PH ORP tester


    1 Water treatment monitoring: drinking water surface water quality groundwater environmental sewage discharge monitoring urban drainage network monitoring


    2 Industrial process monitoring and dosing control treatment: chemical petroleum paper food medicine electroplating PCB manufacture


    Technical Parameters of Online PH ORP tester


    ModelAPX2-C3D
    Software versionDRFN PH Analysis software V1.0
    Sensor InputPHGlass PH sensor
    ORPRedox sensor (platinum / gold sensor)
    TEMPPT1000 or NTC10K

    Range/

    resolution

    PH-2~16pH / 0.01pH
    ORP±2000mV / 1mV
    Measure temperature-10~150℃ / 0.1℃(14~302℉ / 0.1℉)
    PerformanceAccuracy0.1% of span or PH: ±0.02pH /ORP: ±2mV, select larger one.
    Stability0.05% of span every 24 hours, no accumulation.
    RepeatabilityBetter than 0.1% of span
    Relay control2 SPST relays: PH/OPR alarm, water temperature alarm, electrode cleaning cycle control; the maximum load is 3A/250VAC.
    Analog current outputTwo ways 0/4 ~ 20mA current; accuracy 0.00025 (16 bits); Maximum load 1000 Ω.

    Communication mode


    Two-wire RS485 interface, communication protocol: MODBUS RTU

    Supports JSON (JavaScript Object Notation) text data formats.

    Display Language


    128 x 64 dots LCD ; English / Chinese / Other languages

    Time history/

    data record

    Record in years, months, dates, hours, minutes and seconds,

    Keep 14,000 historical measurements and last 500 maintenance data T

    Overall dimensions144*144*120mm Panel Hole dimension 138*138mm
    PowerDC power supply 18~36VDC
    Power consumption5W
    Instrument weightAbout 800g

    Advantage of Online PH ORP tester


    The PH/ORP tester can not only make temperature compensation for the test sample by accessing the temperature electrode, but also monitor the instrument's environmental operating temperature (instrument temperature self-test) in real time, and when the instrument's operating temperature changes, the instrument compensates for the hardware changes caused by temperature drift, making the test results more accurate, which is a patented technology.


    The PH ORP tester is an online tester with rich output configuration, suitable for high-demand monitoring and control applications.


    The PH ORP instruments are available in a variety of dimensions to meet a wide range of installation methods, while also providing the necessary installation accessories. The PH ORP tester intelligently diagnoses glass electrodes and prompts field engineers for electrode maintenance or replacement.


    The PH ORP tester works accurately in years, months, dates, hours, minutes and seconds, it records the measurement data on time to form a consultable historical data. The PH ORP instrument can record up to 14,000 historical measurements. The recording interval is freely set by the user. User maintenances are also recorded and the last 500 maintenance data are saved to help us find and analyze the cause of the instrument's abnormal operation.

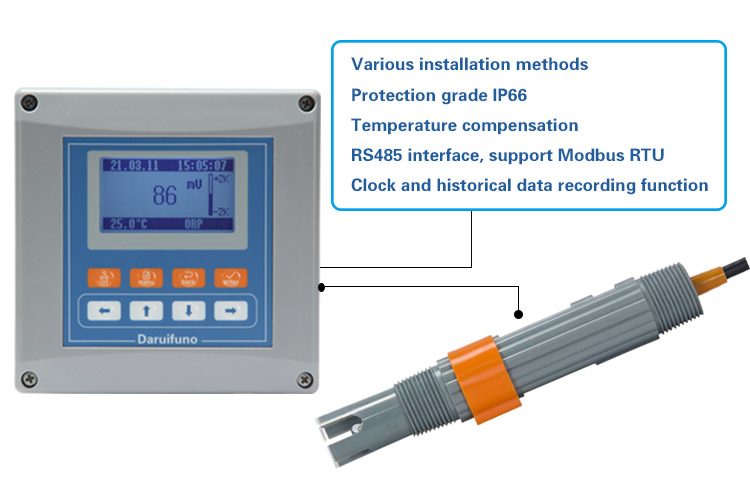

    More picture for Online PH ORP tester
