    RS485 PH ORP Controllers

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : DUC2-PH-H-A
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    RS485 PH ORP Controllers

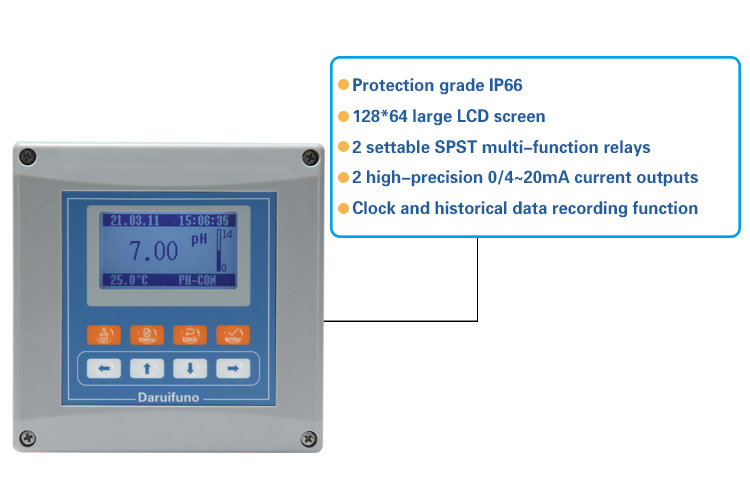

    RS485 IP66 Digital Universal PH ORP Meter Online With LCD Display Screen


    Brief Description


    Water quality is crucial in all areas of life to process industrial automation. Applications such as aquaculture and chromium wastewater treatment rely on accurate pH and ORP measurements to ensure safe pH levels or proper control of chromium reduction processes.


    DUC series PH ORP digital universal controller, is a single parameter controller, each pH ORP controller, will be pre-installed with a set of embedded software to adapt to different PH/ORP digital sensors. By accessing various different types of PH/ORP digital sensors, to achieve the measurement needs of different scenarios.


    The instrument has a 3.2-inch display screen, using a 128*64 LCD display, the display backlight provides constant brightness and energy-saving mode selection. Also provides at least two languages, Chinese and English, to display sensor measurement data and other dynamic data of the pH ORP analyzer.


    The protective grade of the DUC pH ORP controller is IP66, which can effectively isolate the pollution of the external environment and the invasion of the corrosive gas. Rich output configurations are available to meet the different detection needs of many applications.

    Advantages Of pH ORP Meter


    The connected sensors upload the detected data in a special encrypted communication method to ensure that the controller can collect high-precision data in a more stable manner.


    The pH ORP meter has 2 settable SPST multi-function relays and 2 high-precision 0/4~20mA current outputs.


    The Menu password can be set to facilitate hierarchical management.


    Applications Of pH ORP Meter


    Widely used for online monitoring pH/ORP in environment protection water treatment, pure water treatment, industrial process, aquaculture industry, etc.


    Technical Parameters


    Product Name

    pH ORP meter

    Product Model

    DUC2-PH-H-A

    Software Version

    DRFN PH Analysis software V1.0

    pH Display Range

    -2~16pH

    ORP Display Range

    ±3000mV

    Temperature Display Range

    -10~500℃ /14~932℉

    Relay Control

    2 settable SPST relays max. load 3A/250VAC

    Analog Current Output

    2 settable 0/4~20mA active current loop output max. load 1000Ω

    Communication Method

    MODBUS RTU; support JSON text data format

    Display Screen

    128*64 LCD

    Time History/Data Record

    Year/month/day/hour/min/second, record 14000 historical data

    Protection Level

    IP66

    Operating Environment

    0~60℃, relative humidity less than 95%

    Storage Environment

    -20~70℃, relative humidity less than 55%

    Shell Material

    Enhanced ABS

    Size

    144*144*120mm(hole size 138*138 mm)

    Mounting Method

    Wall mounting, pipe clamping, panel mounting

    Power Supply

    100-240V AC

    Weight

    800g

    Power Consumption

    7W
