    Integrated Digital PH Sensor RS485 Communication For Water Treatment

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : DPH70
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    Integrated Digital PH Sensor RS485 Communication For Water Treatment


    Integrated Digital PH Sensor With RS485 Communication For Water Treatment

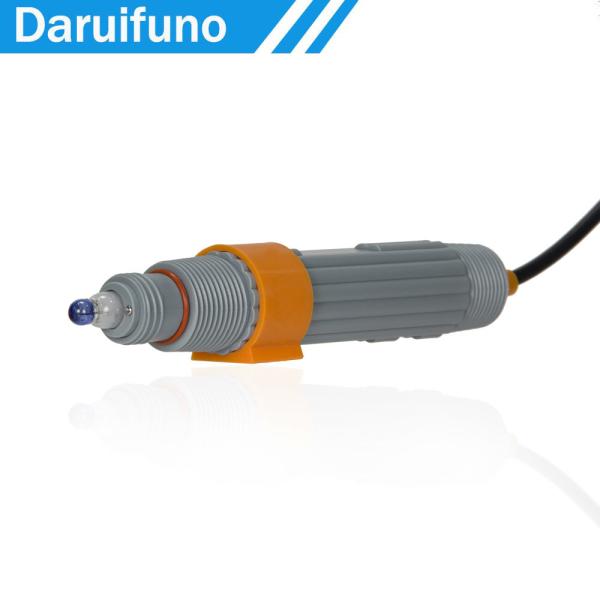

    The DPH70 digital PH sensor can be connected to the DRFN’s digital PH/ORP controllers to measure the PH value. The digital PH probe has a pH measuring range of 0~14. The users can use it with online transmitters, DTUs, and portable instruments.


    Advantages of The Digital PH Sensor


    • All-in-one package, can be used conveniently with other instruments
    • RS485 digital interface, standard Modbus communication protocol, support access to standard industrial control system
    • The protection grade is IP68, and it can work continuously and stably under water for a long time.
    • Internal storage of calibration data, support offline calibration, plug and play on site


    Applications of The Digital PH Sensor


    General water purification, lakes and rivers, urban underground pipe networks and other environments.


    Technical Parameter


    Product Name

    Digital PH Sensor

    Product Modle

    DPH70

    Measure Range

    0~14pH/0.0~50.0℃

    Resolution

    0.01 pH / 0.1℃

    Accuracy

    0.1% of the measuring range (or PH: ±0.02pH), take the larger one

    Temperature Compensation

    Built-in temperature unit, automatic temperature compensation

    Calibration

    Zero position/slope/deviation

    Operating Temperature

    0°C ~ 50°C

    Working Pressure

    0~2bars

    Dimensions

    Diameter: 35 mm; Length: 260 mm (including cleaning protection cover)

    Material

    PPS

    Weight

    150g

    Protection Grade

    IP68

    Installation Size

    One inch 1"NPT at the beginning and end of the installation thread; insertion depth 100 (including cleaning plug 115)


    The Matching ORP Controllers Recommendation


    Product NamePH Meter
    Product ModelAPX1-C2A/C2D
    Software VersionDRFN PH Analysis software V1.0
    Sensor pH InputGlass pH sensor
    Sensor Temperature InputPT1000 or NTC10K(B)
    pH Range-2~16pH
    ORP Range± 2000mV
    Temperature Range-10~150℃ /14~302℉
    Resolution0.01pH / 1mV/ 0.1℃
    AccuracyPH:±0.02 pH /ORP:±2 mV
    Stability0.05% of the measurement range per 24 hours, no accumulation
    Sensor DiagnosisDisplay images on the screen
    Analog Current Output2 settable 0/4~20mA active current loop output, maximum load 1000Ω
    Relay Control2 settable SPST relays, maximum load 3A / 250VAC
    Digital CommunicationTwo-wire RS485 interface, communication protocol: MODBUS RTU
    Screen Display128 * 64 LCD
    Operating Environment0~60℃, RH< 95%
    Storage Environment-20~70℃, RH < 55%
    Power Supply100~240V AC or 18-36V DC
    Power Consumption3 W
    Shell MaterialEnhanced ABS
    Dimension100×100×120 mm (hole size 92*92mm)
    Weight500g
    Mounting MethodPanel installation
    Electrical InterfaceThe back end of the instrument reserved 3 M12*1.5 gland
