    2000mV ORP Electrode PH ORP Sensor With Ring Type Pt Detection Head

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : ASR201V-D05-A
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    2000mV ORP Electrode PH ORP Sensor With Ring Type Pt Detection Head


    2000mV ORP Electrode ORP Probe Sensor With Ring Type Pt Detection Head


    Introduction and advantages:


    ORP value (oxidation-reduction potential) is an important indicator of water quality, although it can not independently respond to the good or bad water quality, but can be integrated with other water quality indicators to reflect the ecological environment in the aquarium system. The ORP electrode is a composite electrode with a glass housing. It uses a ring-type platinum detection head, has a wide response range.


    The reference of the ORP sensor ASR201V-D05-A uses an annular porous diaphragm. The advantage of porous diaphragms is the fast permeation rate and quick response, and the material is not easy to clog and easy to clean.


    The reference electrode is Ag/AgCl, filled KCL colorless high-temperature gel. The gel electrode has the advantage of low maintenance and suitable for online measurements in demanding applications.


    There is a mounting thread of size PG13.5 at the end of the electrode for easier installation.


    This ORP probe is equipped with a standard 5-meter low noise lead.


    Applications:


    1. Water treatment monitoring: drinking water, surface water source water quality, groundwater, environmental protection sewage discharge monitoring, urban drainage pipe network monitoring, etc.


    2. Industrial process monitoring and dosing control management: chemical industry, petroleum, papermaking, food and medicine, electroplating, PCB manufacturing, etc.


    Technical parameters:


    Product NameORP electrode sensor
    Product Model

    ASR201V-D05-A

    ORP Range±2000mV
    Pressure Range0~2bar
    Temperature Range0~80℃

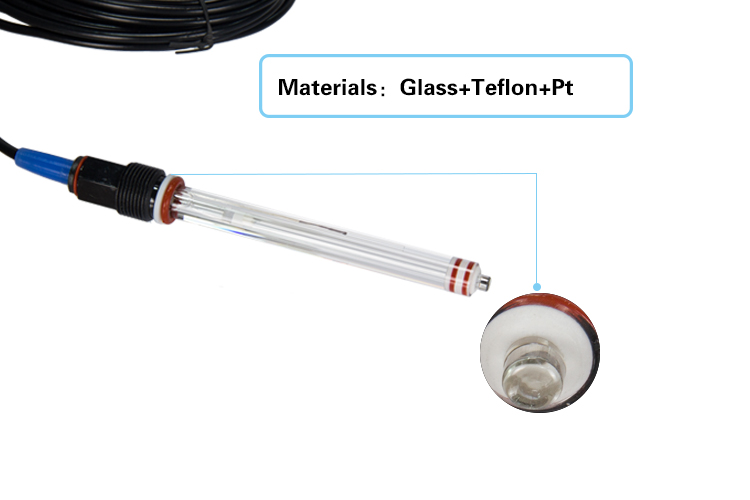

    Materials

    Glass++Pt

    Mounting Size

    Mounting thread PG13.5

    Size

    Diameter 12mm/length 120 mm

    Signal cable connectorPin type(customizable)

    Suggestions:


    The Redox electrode is a precious metal electrode. It is used for potential measurements and at the same time cannot participate in chemical reaction processes. It means the electrode should be subjected to chemical shocks. Therefore, only precious metals such as platinum, gold, or silver can be used here.


    If you want to know more about the analog signals ORP sensor, please contact us.
