    2 SPST Online Conductivity Meter For Waste Water Treatment 100 X 100 X 120mm

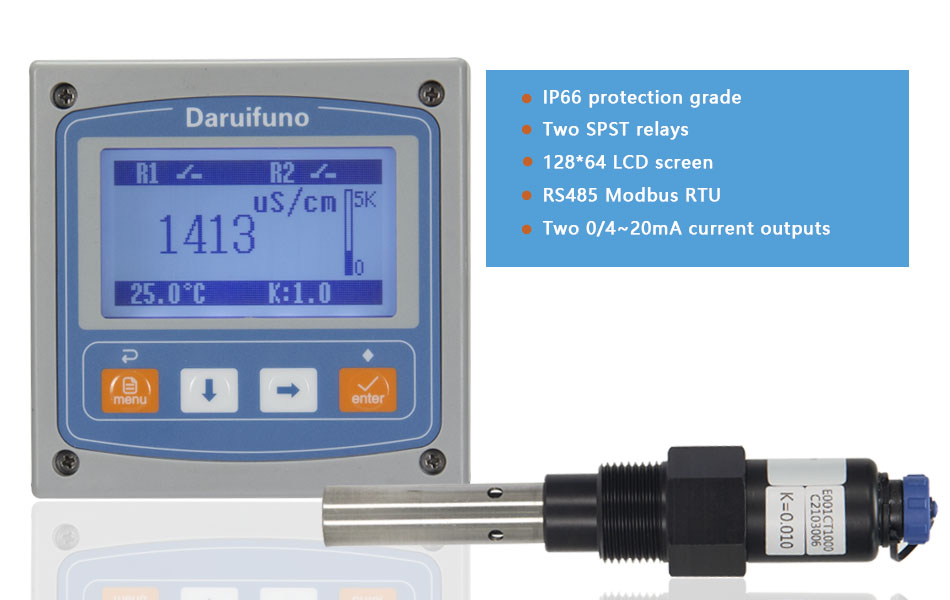

    Online Conductivity Analyzer 2 SPST For Waste Water Treatment 100 * 100 * 120mm


    Introduction


    The online conductivity analyzer uses electrode measurement method to realize the continuously monitoring of the conductivity value in the solution. The AEC1-C2A conductivity controller can be connected with DRFN’s conductivity sensors with different cell constants to achieve different measurement ranges. This model has a conductivity measurement range of 0.00~10.00mS/cm.


    Advantages Of The Online Conductivity Analyzer

    2-electrode measurement method

    IP66 protection grade

    2 SPST multi-function relays

    2 high-precision 0/4~20mA current output

    A two-wire RS485 interface

    128*64 large graphic dot matrix LCD screen

    shortcut keys to carry out daily necessary maintenance





    Applications Of The Online Conductivity Analyzer

    ● Power plant-water treatment;

    ● Water plants and sewage plants-wastewater treatment;

    ● Papermaking-production process/wastewater treatment;

    ● Chemical oil refining-production process/wastewater treatment;

    ● Metallurgy and mining-production process/wastewater treatment;

    ● Food and beverage-production process/wastewater treatment;

    ● Pharmaceutical industry-biological reaction and fermentation/wastewater treatment;

    ● Semiconductor-production process/waste water treatment/high-purity water production.

    Technical Parameters

    Product Name

    Conductivity analyzer

    Product Model

    AEC1-C2A

    Software Version

    DRFN conductivity Analysis software V1.0

    Conductivity Measuring Range

    0.00~10.00 mS/cm, full range automatic switching (The measurement range is related to the connected electrode constant)

    Temperature Measuring Range

    -10~150℃ /14~302℉

    Resistivity Display Range

    0.01Ω.cm~18MΩ.cm

    TDS Display Range

    0.000mg/L~500g/L

    Salinity Display Range

    (0.00~10.0)%

    Conductivity Resolution

    0.001μS/cm

    Resistivity Resolution

    0.01Ω.cm

    TDS Resolution

    0.001mg/L

    Salinity Resolution

    0.01%

    Temperature Resolution

    0.1℃/ 0.1℉

    Accuracy

    0.1% of measuring range

    Stability

    0.05% of the measuring range every 24 hours, no accumulation

    Repeatability

    Better than 0.1% of the measuring range

    Sensor Diagnosis

    Screen image display

    Relay Control

    2 settable SPST relays max. load 3A/250VAC

    Analog Current Output

    2 settable 0/4~20mA active current loop output max. load 1000Ω

    Communication Method

    Two-wire RS485 interface, MODBUS RTU

    Display Screen

    128*64 LCD, adjustable backlight mode

    Configuration Information

    Power failure protection, indefinite retention of parameters

    Protection Level

    IP66

    Operating Environment

    0~60℃, relative humidity less than 95%

    Storage Environment

    -20~70℃, relative humidity less than 55%

    Shell Material

    Enhanced ABS

    Dimensions

    100*100*120mm (hole size 92*92 mm)

    Mounting Method

    panel mounting

    Electrical Interface

    Three M12*1.5 Gellen heads are reserved at the back of the instrument, with a wire diameter of 3~6.5mm.

    Power Supply

    100~240V AC

    Weight

    500g

    Power Consumption

    3W



    Recommended Conductivity Sensors

    ModelMeasuring MethodK-valueMeasuring RangeTemperature Compensation
    ASC100Graphite 2-pole electrode10~20000μS/cmNo
    ASC200Graphite 2-pole electrode10~20000μS/cmPT or NTC
    ASC400Planar 4-pole electrode0.50~200000μS/cmNo
    ASCK12-pole conductivity cell electrode11~2000μS/cmPT or NTC
    ASCK012-pole conductivity cell electrode0.10.1~200μS/cmPT or NTC
    ASCK0012-pole conductivity cell electrode0.010.01~20μS/cmPT or NTC
