    Salinity 4 Electrodes Online Conductivity Analyzer For Wastewater Treatment

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : C4E
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    Salinity 4 Electrodes Online Conductivity Analyzer For Wastewater Treatment

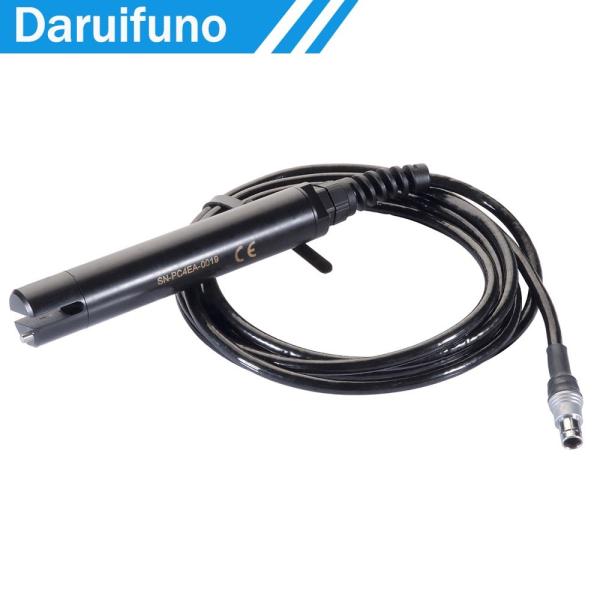

    Digital Conductivity Sensor Salinity With 4 Electrodes For Wastewater Treatment


    The digital conductivity sensor C4E is designed with smart digital technology for optimized measures. The conductivity probe can be widely used in urban wastewater treatment, industrial effluent treatment, surface water monitoring, seawater, and drinking water.


    Introduction Of The Digital Conductivity Sensor


    The sensor works with 4 electrodes: an alternating current of constant-voltage is established between a primary pair of electrodes in graphite. The secondary electrodes in platinum allow of regulating the voltage to imposed to the primary’s electrodes to reflect the fouling. The voltage measured between the primary’s electrodes is in the function of the resistance of place and so, of the conductivity.


    Advantages of The Digital Conductivity Sensor

    • Store calibration and history data within the sensor
    • "plug and play" system without re-calibration

    • Universal Modbus RS485 protocol

    • Robust and Watertight


    Technical Characteristics


    Product Name

    Digital Conductivity Sensor

    Product ModelC4E

    Measure Principle

    4 electrodes (2 graphics, 2 platinum)

    Measure ranges Conductivity

    0~200.0 μS/cm

    0~2000 μS/cm

    0.00~20.00 mS/cm

    0.0~200.0 mS/cm

    Resolution

    0.01 to 1, according to the range

    Accuracy

    ± 1% of the full range

    Measure Range Salinity

    5~60 g/Kg

    Measure Range TDS-KCl

    0-133 000 ppm

    Response Time

    < 5 s

    Working Temperature

    0°C ~+50°C

    Temperature CompensationNTC

    Stocking Temperature

    -10°C ~+60°C

    Signal Interface

    Modbus RS485 (standard) and SDI12 (option)

    Max Refreshing Time

    Max<1s

    Sensor Power Supply5~12V

    Dimensions

    Diameter: 27 mm; Length: 177 mm

    Weight

    300 g (sensor + cable 3 meters)

    Material

    PVC, DELRIN, stainless steel

    Maximum Pressure

    5 bars

    Protection Grade

    IP68

    Connection

    9 armoured connectors, polyurethane jacket, bare-wires or waterproof Fisher connector


    Dimensions Of The Digital Conductivity Sensor



    Wiring Diagram Of The Digital Conductivity Sensor
