    Digital 850nm Infrared Turbidity Sensor For Sewage Plants

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : OPTU850
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    Digital 850nm Infrared Turbidity Sensor For Sewage Plants


    Digital 850nm Infrared Turbidity Sensor For Turbidity Monitoring In Sewage Plants


    Measuring Principle Of The Infrared Turbidity Sensor


    The OPTU850 series Infrared turbidity sensor is based on the combined infrared absorption scattered light method, and the ISO7027 method can be used to continuously and accurately determine the turbidity. The turbidity value is determined according to ISO7027 infrared scattered light technology without being affected by chromaticity.


    The self-cleaning function of the Turbidity electrode is optional according to the operating environment.



    Advantages of The Infrared Turbidity Sensor


    • Stable measuring data, reliable performance;
    • built-in self-diagnosis function to ensure accurate measuring data;
    • Easy installation;
    • Calibrate easily.

    Applications of The Infrared Turbidity Sensor


    Turbidity is the abbreviation of turbidity, which is the result of the interaction of light and suspended particles in the solution. The incident turbidity is mainly caused by the residues after purification treatment of colloids, suspended solids and biological particles in the water source water.


    Turbidity is a sensory index that shows whether the high temperature and pressure are clear or not, and it is a related index that reflects the amount of microorganisms and organic matter in the reflection. Turbidity is an important operational control parameter in the process of absorbing and purifying water. It can indicate the treatment effect of water purification, especially flocculation, sedimentation and filtration.


    The sensor is widely used in turbidity monitoring in sewage plants, water plants, water stations, surface water, industry, and other fields.


    Technical Parameter


    Product Name

    Infrared turbidity sensor

    Product Model

    OPTU850

    OPTU851

    Measure Principle

    Infrared absorption scattered light method

    Measure Range

    0.01~1000NTU

    0.01~4000NTU

    Light source

    850nm infrared light source

    Accuracy

    Less than ±1% of the measured value, or ±0.1NTU, take the larger one

    Flow rate

    ≤2.5m/s,8.2ft/s

    Power Supply

    12V DC

    Calibration Method

    Sample calibration, slope calibration

    Operating Temperature

    0°C ~ 45°C

    Dimensions

    Diameter: 52 mm; Length: 195 mm

    Probe Pressure

    4 bars

    Material

    SUS316L+POM

    Weight

    700g

    Protection Grade

    IP68/NEMA6P

    Cable

    10 meters can be customized

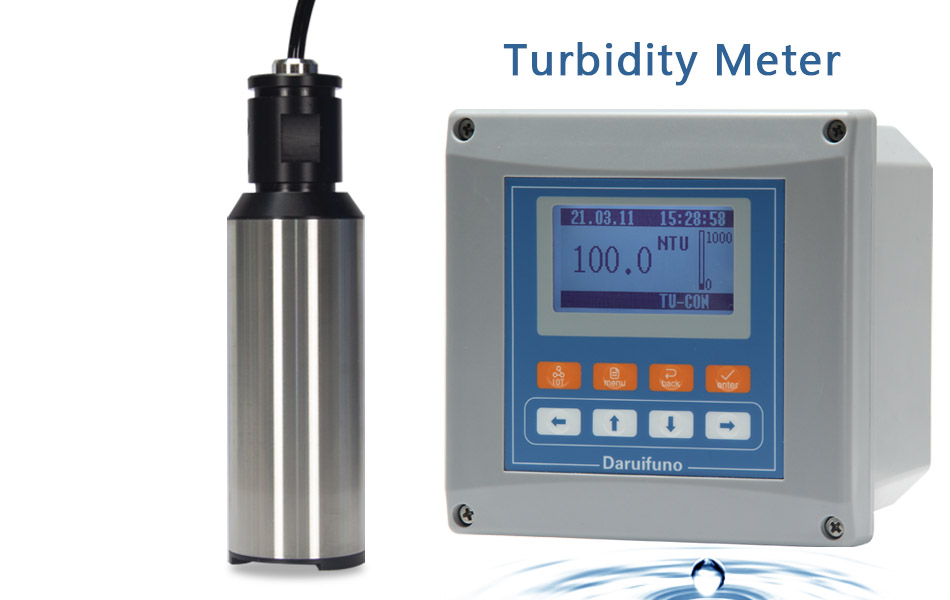

    The Matching DRFN's Turbidity Controller


    Product NameTurbidity Meter
    Product Model DUC2-HTU-S (click here to view)
    Software VersionDRFN TU Analysis software V1.0
    OTADefault WiFi
    Turbidity Display Range0.001NTU~4000NTU
    Turbidity Resolution0.001NTU
    Relay Control2 settable SPST relays max. load 3A/250VAC
    Analog Current Output2 settable 0/4~20mA active current loop output max. load 1000Ω
    Communication MethodMODBUS RTU; support JSON text data format
    Display Screen128*64 LCD, adjustable backlight mode
    Time History/Data RecordYear/month/day/hour/min/second, record 14000 historical data
    Protection LevelIP66
    Operating Environment0~60℃, relative humidity less than 95%
    Storage Environment-20~70℃, relative humidity less than 55%
    Shell MaterialEnhanced ABS
    Size144*144*120mm (hole size 138*138 mm)
    Mounting MethodWall mounting, pipe clamping, panel mounting
    Power Supply100~240V AC or 18~36V DC
    Weight800g
    Power Consumption12W
    Cleaning Systemmax. 24W(laser circulation sensor optional item)
