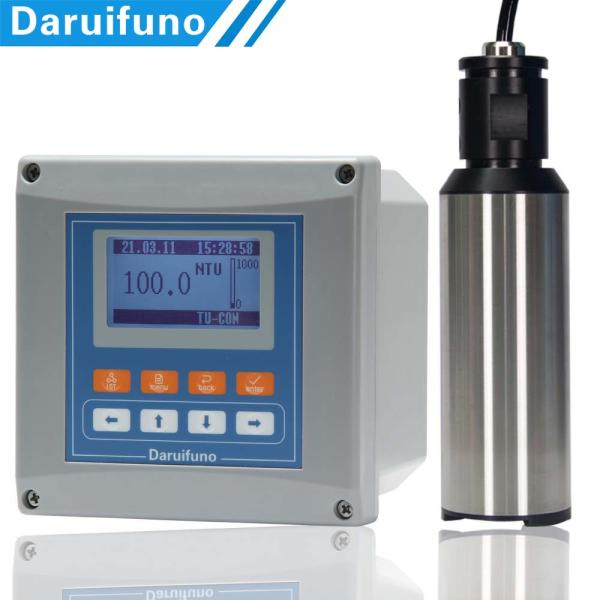

    RS485 Digital Probe Type Turbidity Instrument For Wastewater Treatment

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : DUC2-HTU-H-A
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    RS485 Digital Probe Type Turbidity Instrument For Wastewater Treatment


    RS485 Digital Probe Type Turbidity Instrument For Wastewater Treatment


    Brief Introduction


    1. Water with high turbidity is easy to provide growth carriers for bacteria and microorganisms, multiplying rapidly, and the residual chlorine is consumed too quickly, the water quality is easy to deteriorate, and the water age is too long, which is likely to cause water quality accidents.


    2. The universal digital turbidity instrument DUC2-HTU-H-A is designed specifically for the DRFN digital series of turbidity sensors, compatible with all of DRFN's turbidity sensors.


    3. The digital turbidity analyzer has a 3.2-inch display screen, uses a 128*64 black and white graphic dot matrix LCD liquid crystal display, and the display backlight provides constant light and energy-saving mode selection. At least two languages, Chinese and English, are provided to display sensor measurement data and other dynamic data of the instrument.


    4. The connected sensors upload the detected data in a special encrypted communication method to ensure that the DUC controller can collect high-precision data in a more stable manner.


    5. The turbidity instrument has 2 settable multi-function SPST relays and 2 high-precision 0/4~20mA current outputs.


    6. The protective grade of the shell is IP66, which can effectively isolate the pollution of the external environment and the invasion of the corrosive gas. Rich output configurations are available to meet the different detection needs of many applications.



    Advantages


    1. There are clock and historical data recording functions to meet higher data management requirements. The DUC turbidity instrument can record 14000 historical data, record interval can be set between 1~999 minutes. The meter has power-off protection, parameters are retained indefinitely.


    2. The Menu password can be set to facilitate hierarchical management. Rich output to meet monitoring, control, and data remote transmission at the same time.


    3. The DUC Universal turbidity instrument can accommodate a wide range of mounting options and can also be supplied with the necessary mounting accessories for installation.


    Applications Of The Turbidity Instrument


    Surface water, drinking water quality, municipal network water quality monitoring, industrial process water quality monitoring, wastewater treatment plant turbidity measurement, etc.


    Technical Parameters


    Product Name

    Turbidity Instrument

    Product Model

    DUC2-HTU-H-A

    Software Version

    DRFN TU Analysis software V1.0

    Turbidity Display Range

    0.001NTU~4000NTU

    Turbidity Resolution

    0.001NTU

    Relay Control

    2 settable SPST relays max. load 3A/250VAC

    Analog Current Output

    2 settable 0/4~20mA active current loop output max. load 1000Ω

    Communication Method

    MODBUS RTU; support JSON text data format

    Display Screen

    128*64 LCD, adjustable backlight mode

    Time History/Data Record

    Year/month/day/hour/min/second, record 14000 historical data

    Protection Level

    IP66

    Operating Environment

    0~60℃, relative humidity less than 95%

    Storage Environment

    -20~70℃, relative humidity less than 55%

    Shell Material

    Enhanced ABS

    Size

    144*144*120mm (hole size 138*138 mm)

    Mounting Method

    Wall mounting, pipe clamping, panel mounting

    Power Supply

    100~240V AC

    Weight

    800g

    Power Consumption

    12W
    Cleaning Systemmax. 24W(laser circulation sensor optional item)
