    IP66 220V Chlorine Analyzers For Detecting Pools

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : DUC2-CN1.1-H-A
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    IP66 220V Chlorine Analyzers For Detecting Pools


    IP66 220V Chlorine Controller For Detecting The Absence Of Chlorine For Pools


    Introduction


    The chlorine meter is used for checking whether the drinking water contains chlorine under the condition of 6.5 ~ 9pH. In order to protect the equipment. The DUC2-CN1.1-H-A chlorine controller is a single-parameter instrument, it is connected to the chlorine sensor to realize the detection of the absence of chlorine.


    Advantages Of The Chlorine Controller


    1. Rich output configuration, which can transmit analog and digital signals, and can also connect and control other devices through relays to meet the different needs of many applications.


    2. Record the user's maintenance details of the equipment, the calibration effect of the diagnostic sensor, and will give corresponding prompts for inaccurate calibration instruments.


    3. Two-wire RS485 interface, the communication protocol is MODBUS RTU, support JSON text data format.


    4. 2 configurable 0/4~20mA active current loop outputs.


    5. It has clock and historical data recording functions to meet higher data management requirements.


    Parameters Of The Chlorine Controller


    Product NameChlorine Controller
    Product Model

    DUC2-CN1.1-H-A

    Software Version

    DRFN Chlorine Analysis software V1.0

    Display Range

    0.00-200.00mg/L

    Resolution

    0.001 mg/L

    Accuracy

    Better than 0.15% of the measuring range

    Stability

    0.05% of the measuring range every 24 hours, no accumulation

    Repeatability

    Better than 0.1% of the measuring range

    Relay Control

    2 settable SPST relays, the max. load 3A/250VAC

    Sensor Self-diagnosis

    screen image and buzzer prompt

    Analog Current Output

    2 settable 0/4~20mA active current loop output max. load 1000Ω

    Communication Method

    MODBUS RTU; support JSON text data format

    Display Screen

    128*64 LCD

    Time History/Data Record

    Year/month/day/hour/min/second, record 14000 historical data

    Protection Grade

    IP66

    Operating Environment

    0~60℃, relative humidity less than 95%

    Storage Environment

    -20~70℃, relative humidity less than 55%

    Shell Material

    Enhanced ABS

    Dimensions

    144*144*120mm (hole size 138*138 mm)

    Mounting Method

    Wall mounting, pipe clamping, panel installation

    Power Supply

    100~240V AC

    Weight

    800g

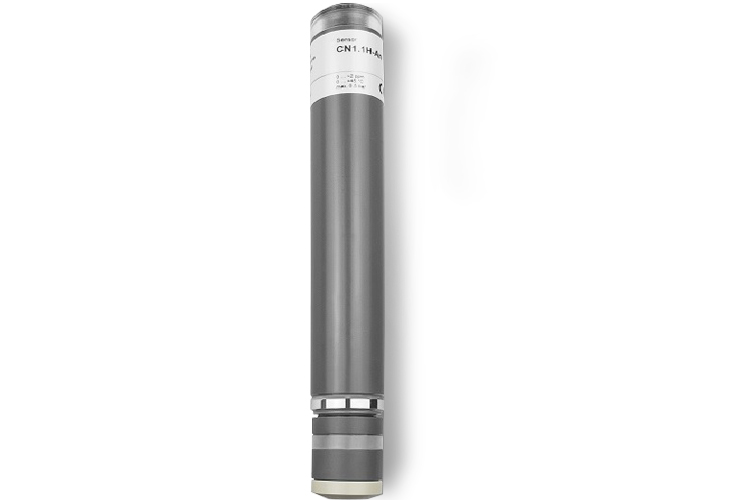

    The Matching Chlorine Sensors Recommendation


    • Model: CN1.1
    • pH range: 6.5~9
    • Pressure range: 0~0.5 bar, no pressure surges and/or fluctuations
    • Temperature range: 0~ 40℃, (not any ice crystals in water)

    • Integrated automatic temperature compensation
    • Response time: T90 about 2 min
    • Flow rate: about 30 l/h, low flow dependence
    • Shaft length: standard 195 mm, and 205 mm (Modbus version)
    • Connection: Modbus RTU M12 male
    • Material: PVC-U, PEEK, stainless steel 1.4571, microporous membrane

    Type:

    Measuring range:

    ppm

    Resolution:

    ppm

    Output signal:Power supply:Item number:
    CN1.1H-M0c

    0.005~2.000

    0.001

    Modbus RTU

    9~30 VDC

    20~56 mA

    3326610
    CN1.1H-M0c3326612
