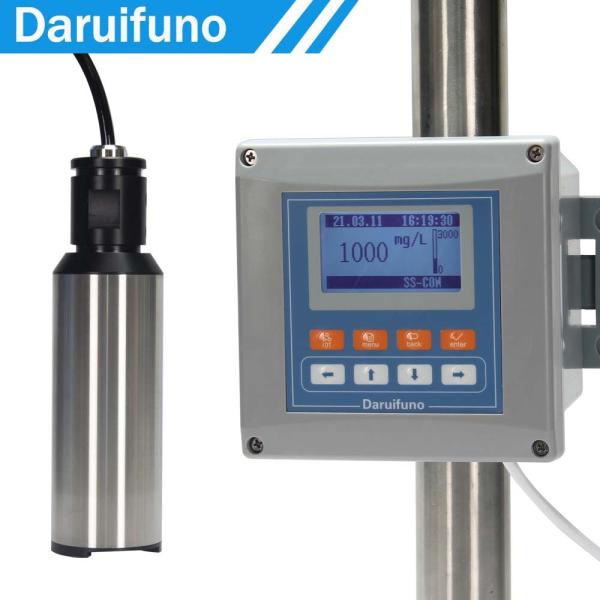

    OTA Online Digital Total Suspended Solids Sensor For TU Measurement


    OTA Online Digital Suspended Solids Analyzer Infrared Sensor For Measurement Of TU


    Brief Introduction


    The DUC2-SS-S suspended solids analyzer uses an optical method for determining the turbidity suspended solids, a light beam is directed into the sample where it is scattered by suspended particles in the water. The amount of scattering depends on the amount of material in the water, the wavelength of light used and the size and composition of the suspended particles.


    The matched SS sensor is OPSS800, OPSS800 digital infrared suspended solids sensor is based on the 90-degree infrared scattering method of ISO7027 standard, which measures the value of suspended solids of the sample according to the intensity of the scattered light of suspended particles in the water sample.

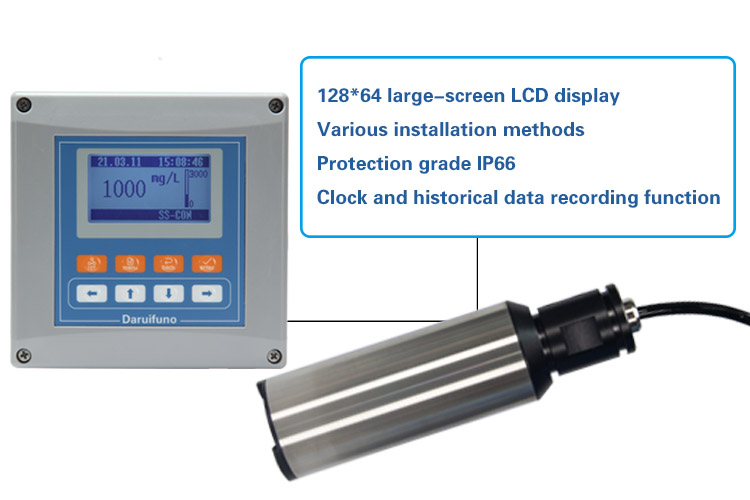

    Advantages Of The Suspended Solids Analyzer


    suspended solids controller


    This DUC series of suspended solids (sludge concentration) analyzer can stably collect the data uploaded by the sensor in a special encrypted communication method, and display the data in real-time on the display screen, which is convenient for users to read.


    128*64 large-screen LCD display, Chinese and English language display, rich content, to meet the different needs of users.


    The enclosure protection grade of the SS meter is IP66. This material can effectively isolate the pollution and corrosive gas from the external environment.


    suspended solids sensor


    The unique protective structure design of the Infrared Suspended Solids Sensor detection surface can protect the sensor detection window to the greatest extent and avoid accidental collisions during installation and use to damage the sensor measurement surface


    Protected measurement window design to prevent accidental damage to the sensor.


    Support up to 10 points of calibration, can accurately measure the turbidity value.


    The sensor stores the calibration parameters internally, supports offline calibration and plug-and-play.


    The main material of the SS sensor is stainless steel and POM, which is strong and sturdy.


    Applications Of The Suspended Solids Analyzer


    Industrial wastewater treatment, municipal sewage treatment, river and lake monitoring, and other fields.


    Technical Parameters


    Product Name

    Suspended Solids analyzer

    Product Model

    DUC2-SS-S

    Software Version

    DRFN SS (sludge concentration) Analysis software V1.0

    Turbidity Display Range

    0.01mg/L~100g/L

    Turbidity Resolution

    0.01mg/L

    Relay Control

    2 settable SPST relays max. load 3A/250VAC

    Analog Current Output

    2 settable 0/4~20mA active current loop output max. load 1000Ω

    Communication Method

    Two-wire RS485 interface; MODBUS RTU; support JSON text data format

    Display Screen

    128*64 LCD, adjustable backlight mode

    Time History/Data Record

    Year/month/day/hour/min/second, record 14000 historical data

    Protection Level

    IP66

    Operating Environment

    0~60℃, relative humidity less than 95% (no condensation)

    Storage Environment

    -20~70℃, relative humidity less than 55% (no condensation)

    Shell Material

    Enhanced ABS

    Size

    144*144*120mm (hole size 138*138 mm)

    Mounting Method

    Wall mounting, pipe clamping, panel mounting

    Power Supply

    100-240V AC or 18-36V DC

    Weight

    800g

    Power Consumption

    12W

    Product NameInfrared suspended solids sensor
    Product ModleOPSS800
    Measure Range0~3000mg/L
    Resolution1mg/L
    AccuracyLess than 5% of the measured value
    Measuring PrincipleInfrared scattering principle independent of color
    Calibration MethodActivated sludge calibration, diatomite calibration, linear calibration
    Operating Temperature0.0~45.0℃
    Working Pressure≤0.4Mpa
    DimensionsDiameter: 52mm, length: 195mm
    Materialstainless steel+POM
    WeightApproximately 700g (without cable)
    Power Supply12VDC, power consumption about 50mA
    Light Source850nm infrared light source
