    100 ~ 240V Digital Online COD Measuring Instrument For Wastewater Treatment

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : DUC2-COD-H-A
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

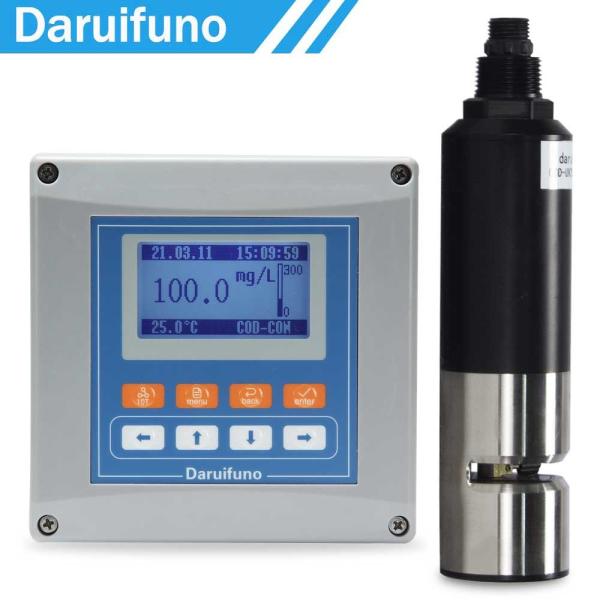

    100 ~ 240V Digital Online COD Measuring Instrument For Wastewater Treatment


    100 ~ 240V Digital Online COD Measuring Instrument For Wastewater Treatment


    Brief Introduction


    • COD (chemical oxygen demand) is a commonly used comprehensive index to evaluate the degree of water pollution. It refers to the amount of oxygen consumed by chemical oxidants (such as potassium dichromate) to oxidize and decompose reducing substances (such as organic matter) in water. It reflects the degree of pollution of the water body by reducing substances.

    • The DUC2-COD-H-A is a digital analyzer specially designed for the measurement of COD. It is a single parameter controller. A set of embedded software is pre-installed to adapt to different DRFN COD digital sensors;

    • 2 high-precision 0/4~20mA current outputs with a maximum load of 1000 ohms;

    • 2 settable SPST multifunctional relays with a maximum load of 3A/250V AC;
    • The enclosure protection grade is IP66, can effectively isolate the pollution and corrosive gas from the external environment;

    • The digital online COD analyzer for wastewater treatment has a two-wire RS485 interface, the communication protocol is MODBUS RTU, and supports JSON text data format;

    • The shell material of the COD analyzer is enhanced ABS, its overall size is 144*144*120mm;
    • Mounting method: Wall mounting, pipe clamping, panel installation (hole size 138*138 mm).


    Advantages Of The Online COD Measuring Instrument


    • Clock and historical data recording functions to meet higher data management requirements;

    • 3.2-inch display screen and a 128*64 black and white graphic dot matrix LCD liquid crystal display, with reasonable interface settings and simple operation;

    • The COD analyzer has a power-off protection configuration, and the parameters can be kept indefinitely;
    • The display backlight of this instrument provides a choice of always-on and energy-saving modes, which users can set according to their needs.

    • The connected sensors upload the detected data in a special encrypted communication method to ensure that the DUC controller can collect high-precision data in a more stable manner.



    Applications Of The Online COD Measuring Instrument


    River water, surface water, process water, sewage treatment plant, industrial wastewater, drinking water.


    Technical Parameters


    Product Name

    COD measuring instrument

    Product Model

    DUC2-COD-H-A

    Software Version

    DRFN COD analysis software V1.0

    Display Range

    0-1000 mg/L

    Resolution

    0.01 mg/L

    Relay Control

    2 settable SPST relays max. load 3A/250VAC

    Analog Current Output

    2 settable 0/4~20mA active current loop output max. load 1000Ω

    Communication Method

    Two-wire RS485 interface; MODBUS RTU; support JSON text data format

    Display Screen

    128*64 LCD

    Time History/Data Record

    Year/month/day/hour/min/second, record 14000 historical data

    Protection Level

    IP66

    Operating Environment

    0~60℃, relative humidity less than 95% (no condensation)

    Storage Environment

    -20~70℃, relative humidity less than 55% (no condensation)

    Shell Material

    Enhanced ABS

    Size

    144*144*120mm (hole size 138*138 mm)

    Mounting Method

    Wall mounting, pipe clamping, panel mounting

    Power Supply

    100-240V AC

    Weight

    800g

    Power Consumption

    12W
