    Relay Control Chlorophyll Sensor For Aquaculture Water Detecting

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : CHL351
    Certification : CE, ISO
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000 Sets per Month
    Delivery Time : 5-25 days
    • Product Details
    • Company Profile

    Relay Control Chlorophyll Sensor For Aquaculture Water Detecting

    Relay Control Chlorophyll Sensor For Aquaculture Water Detecting


    The chlorophyll sensor uses the characteristic that chlorophyll has absorption peaks and emission peaks in the spectrum, emits monochromatic light at the absorption peak of the chlorophyll spectrum and irradiates the water, and the chlorophyll in the water absorbs the monochromatic energy and releases another wavelength emission peak. Color light, the light intensity emitted by chlorophyll is proportional to the content of chlorophyll in water. The sensor is easy to install and use. It is widely used in water quality monitoring in sewage plants, water plants, water stations, surface water, industry and other fields.


    Specification:

    Product Name
    Chlorophyll sensor
    Product Model
    CHL351
    Brand Name
    Daruifuno
    Measuring Principle
    Fluorescence principle
    Measuring Range
    0~500ug/L
    0~100RFU
    Resolution
    0.1 ug/L
    Deepest Depth
    10 meters underwater
    Sensor Interface
    Support RS485, Modbus protocol
    Power Information
    DC 5~12V, current <50mA (when not cleaning)

    Dimensions


    Diameter 33mm, length 240mm
    Temperature Range
    0.0~50.0℃
    Material
    POM or stainless steel, titanium(customized)
    Waterproof Level
    IP68
    Cable length
    10m(customized)
    Cleaning BrushEquipped

    Please click the catalog of RS485 Chlorophyll sensor here:

    Daruifuno Catalog.pdf

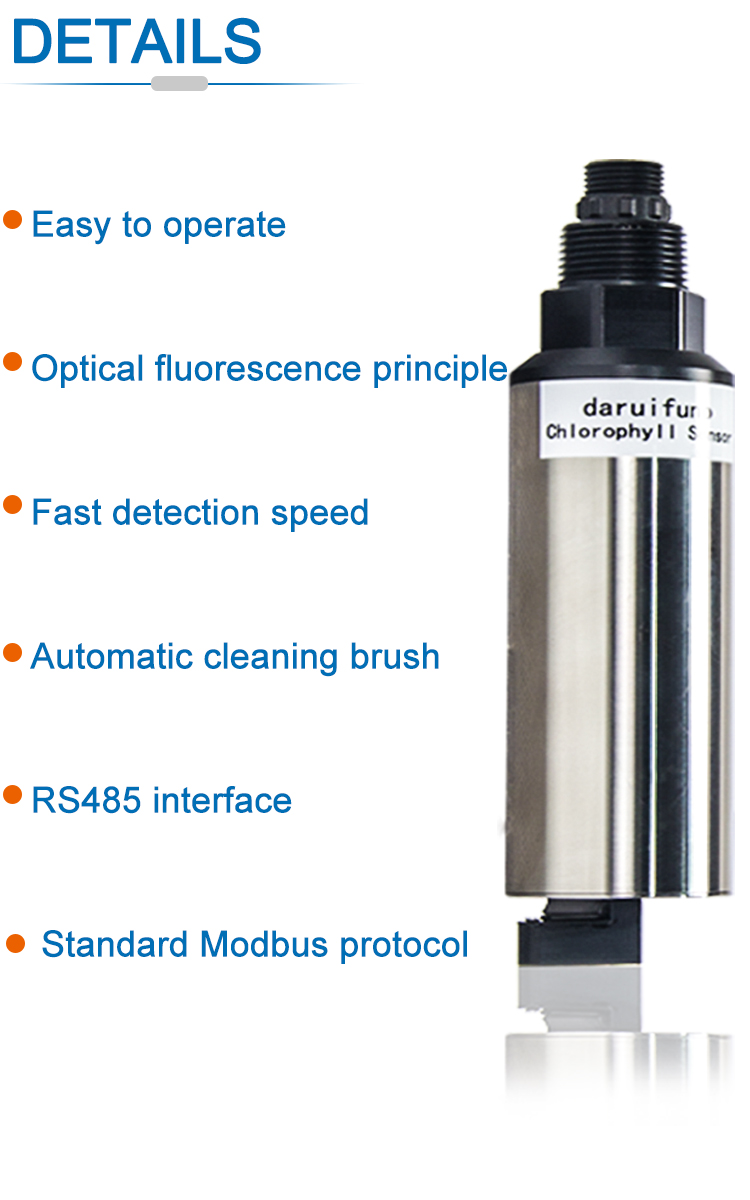

    Features& Advantages

    ● Use the optical fluorescence principle
    ● Small size, easy to operate
    ● Fast detection speed, suitable for frequent and continuous measurements in the field
    ● It adopts fiber-optic structure, has excellent repeatability and stability, and is not easily affected by ambient light
    ● RS485 digital interface, standard Modbus communication protocol, support access to standard industrial control system;
    ● With automatic cleaning brush, it can eliminate pollution coating and bubble accumulation, reduce the influence of measurement, and make the maintenance cycle longer


    Relay Control Chlorophyll Sensor For Aquaculture Water Detecting

    Aplication:

    ◇ Rivers and lakes

    ◇ Surface water

    ◇ Aquaculture waters

    ◇ Urban landscape rivers


    FAQ

    Q1. What is the measuring principle of the Chlorophyll sensor?
    A: Using the optical fluorescence principle


    Q2. What is the advantage of digital Chlorophyll sensor?
    A: The digital chlorophyll sensor is conducive to long-distance signal transmission without serious signal attenuation. The sensor has RS485 interface, standard Modbus RTU communication protocol.


    Q3: Are you the final manufacturer? And can we visit your factory?

    A: Yes, We are manufacturer located in suzhou city, welcome to visit at any time.


    Q4: Do you offer the OEM order ?

    A: Yes, we can offer OEM service and label according to your requirements
