OTA Digital Conductivity / TDS Controller For Ultra Pure Water

Suzhou Delfino Environmental Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap OTA Digital Conductivity / TDS Controller For Ultra Pure Water from wholesalers

    Buy cheap OTA Digital Conductivity / TDS Controller For Ultra Pure Water from wholesalers
    • Buy cheap OTA Digital Conductivity / TDS Controller For Ultra Pure Water from wholesalers
    • Buy cheap OTA Digital Conductivity / TDS Controller For Ultra Pure Water from wholesalers
    • Buy cheap OTA Digital Conductivity / TDS Controller For Ultra Pure Water from wholesalers
    • Buy cheap OTA Digital Conductivity / TDS Controller For Ultra Pure Water from wholesalers

    OTA Digital Conductivity / TDS Controller For Ultra Pure Water

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : DUC2-EC-S-D
    Certification : CE, ISO
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000 Sets per Month
    Delivery Time : 5-25 days
    • Product Details
    • Company Profile

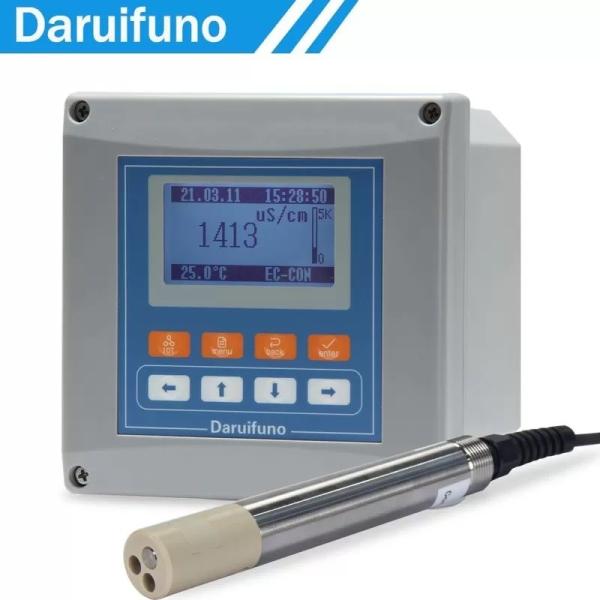

    OTA Digital Conductivity / TDS Controller For Ultra Pure Water

    OTA digital Conductivity /TDS controller for Ultra-pure water


    The DRFN conductivity controller has strong anti-interference ability, realizes remote transmission, and has good electromagnetic compatibility.


    Simultaneously display time, conductivity value or resistivity value, temperature, output current value on the LCD screen.


    Adopt high-brightness liquid crystal wiring harness module, which is eye-catching and has a long visual distance.


    RS485 communication interface: Modbus RTU communication protocol can be easily connected to a computer for detection and communication Automatic range conversion: automatic range conversion is realized within the measurement range covered by the electrode


    Specification:

    ModelDUC2-EC-S-D
    Software VersionDRFN EC Analysis software V1.0
    Sensor InputCompatible with all DRFN's EC Digital Sensors
    Display RangeConductivity0.000µS /cm ~500mS/cm
    Resistivity0.01Ω.cm~18MΩ.cm
    TDS0.000mg/L~500g/L
    Salinity(0.00~10.0)%
    Temp-10~500℃ /14~932℉
    ResolutionConductivity0.001µS /cm
    Resistivity0.01Ω.cm
    TDS0.001mg/L
    Salinity0.01%
    Temp0.1℃/ 0.1℉
    Relay Control2 settable SPST relays with a maximum load of 3A/250VAC
    Analog Current Output2 settable 0/4~20mA current outputs, max. load 1000Ω
    Communication Method

    Two-wire RS485 interface

    MODBUS RTU

    support JSON text data format

    OTA

    Default WIFI

    Display Screen128*64 LCD, adjustable backlight mode, adjustable display rate
    Configuration InformationPower off protection, parameters are retained indefinitely
    Time /Data Record

    Year/month/day/hour/min/second, record 14000 historical data

    record interval can be set between 1~999 minutes

    Maintenance RecordsLast 100 times
    Operating Environment0~60℃,RH<95% ( no condensation)
    Storage Environment-20~70℃,RH<55% ( no condensation, precision instruments)
    Shell MaterialEnhanced ABS
    Protection GradeIP66
    Dimension144*144*120 mm
    Mounting MethodWall mounting, pipe clamping, panel installation (hole size 138*138 mm)
    Electrical InterfaceThe back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
    Power Supply18~36VDC
    Power ConsumptionAbout 7W
    WeightAbout 800g

    Please click the catalog of RS485 EC controller here:

    Daruifuno Catalog.pdf


    Brief introduction:


    ● Compatible with all DRFN conductivity sensors;
    ● Separately have a list of controller and sensor settings for quick and detailed parameter setting;
    ● The working status of the sensor can be queried, including reading the serial number;
    ● Support a variety of installation methods;
    ● Time and historical data recording function;
    ● 3.2-inch large LCD screen;
    ● User-friendly Chinese and English language interface;
    ● Password can be set to prevent misoperation;
    ● 2 SPST multi-function and settable relays;
    ● Two 0/4~20mA active current loop outputs;
    ● RS485 interface, Modbus RTU communication protocol;
    ● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;

    OTA download technology as a smart configuration option for the instrument.

    OTA Digital Conductivity / TDS Controller For Ultra Pure Water

    Aplication:
    ◇ Drinking water
    ◇ Pure water
    ◇ Cooling water
    ◇ Sewage
    ◇ Industrial process water


    FAQ


    Q1. What are the special advantages of the pH instruments?
    A: The instrument can not only compensate the temperature of the test sample by connecting the temperature sensor, but also self-check the working temperature of the instrument in real time. When the working temperature of the instrument changes, the instrument compensates the hardware change caused by the temperature drift. Make the test results more accurate, this is a patented technology.


    Q2. Can our company's logo be added to your company's products?

    Of course, we support OEM services for customers,the operation interface support customization also.


    Q3. How long is the warranty period?
    One year (12 months) from the date of leaving the factory. and the consumables and wearing parts in the equipment are not included. Our company owns two factories,12 years' experience in this industry.It is quality and service keeping us stand still.Our QC team check and examine every single instrument strictly before shipping.


    Q4. Does the conductivity controller have an ambient temperature alarm function?
    Our EC controller has ambient temperature alarm function


    Q5: Do you provide samples for free ?
    A: Yes, we can provide the stock goods for customer testing, but the sample can not be free.


    Q6: The conductivity controller with OTA function?

    Yes. Our DUC2-EC-S-A conductivity controller Default with WIFI.


    Q7: Could I visit your factory?
    A: Welcome to visit our factory in any time ! Our factory located in suzhou,China
