    Industrial Processing Control Digital PH Meter With Cleaning Control

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : DUC2-PH-H-D
    Certification : CE, ISO
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000 Sets per Month
    Delivery Time : 5-25 days
    • Product Details
    • Company Profile

    Industrial Processing Control Digital PH Meter With Cleaning Control

    Digital pH Meter With cleaning control For Industrial Processing Control


    DUC2-PH-H-D is a self-developed pH meter for online monitoring of pH/ORP value. It can be connected to the recorder through the transmission output to realize remote monitoring and recording. It can also be connected to the RS485 interface through Modbus-RTU.


    The protocol communicates with the computer, so that the computer can monitor and record the instrument.


    The control unit is respectively connected with a relay alarm circuit, a current output circuit, a digital communication circuit and a display, and the relay alarm circuit is connected with the relay.


    pH controller DUC2-PH-H-D, widely used as a monitor in water treatment, electrolytic water purification, chemical process, water purification or sewage control and neutralization process and fermentation industry.


    Specification:

    ModelDUC2-PH-H-D
    Software VersionDRFN PH Analysis software V1.0
    Sensor InputCompatible with all DRFN's PH Digital Sensors
    Display RangePH-2~+16pH
    ORP±3000mV
    TEMP-10~500℃ /14~932℉
    ResolutionPH0.01pH
    ORP1mV
    TEMP0.1℃/ 0.1℉
    Relay Control2 settable SPST relays, max. Load 3A/250VAC
    Analog Current2 settable 0/4~20mA current outputs, max. Load 1000 ohms
    Communication MethodTwo-wire RS485 interface; MODBUS RTU; JSON text data format
    OTA——

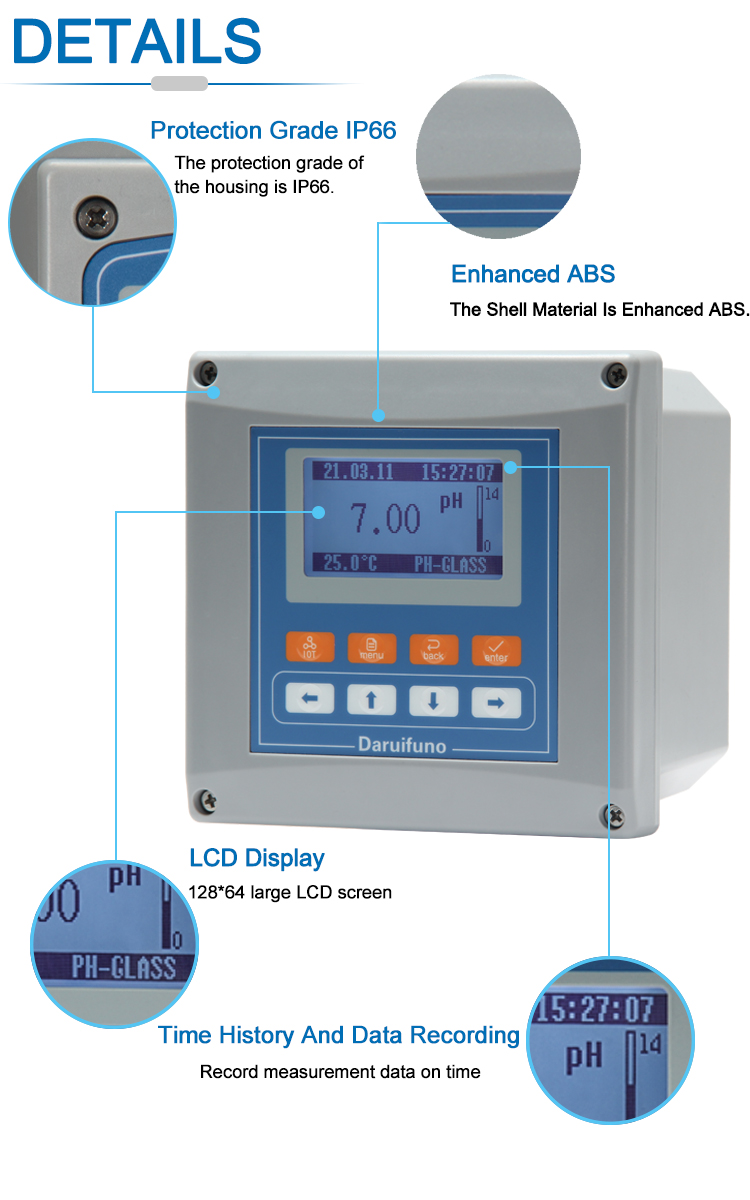

    Display Screen

    128*64 black-and-white graphic lattice LCD

    adjustable backlight mode

    adjustable display rate

    Configuration InformationPower off protection, parameters are retained indefinitely
    Time/Data Record

    Year/month/day/hour/min/second, record 14000 historical data

    record interval can be set between 1~999 minutes

    Maintenance RecordsLast 100 times
    Protection LevelIP66
    Operating Environment0~60℃,RH<95% ( no condensation)
    Storage Environment-20~70℃,RH<55% ( no condensation, precision instruments)
    Shell MaterialEnhanced ABS
    Dimension144*144*120 mm
    Mounting MethodWall mounting, pipe clamping, panel (hole size 138*138 mm)
    Electrical InterfaceThe back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
    Power Supply

    18~36VDC

    Power ConsumptionAbout 7W
    WeightAbout 800g

    More details please refer to catalog here:

    Daruifuno Catalog.pdf


    Brief introduction:

    ● Compatible with all DRFN digital PH/ORP sensors;
    ● Automatic temperature compensation;
    ● The working status of the sensor can be queried, including reading the serial number;
    ● Support a variety of installation methods;
    ● Time and historical data recording function;
    ● 3.2-inch large LCD screen;
    ● User-friendly Chinese and English language interface;
    ● Password can be set to prevent misoperation;
    ● 2 SPST multi-function and settable relays;
    ● Two 0/4~20mA active current loop outputs;
    ● RS485 interface, Modbus RTU communication protocol;
    ● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;​

    Select the temperature display unit, "℃" or "℉" can be selected.

    Industrial Processing Control Digital PH Meter With Cleaning Control

    Aplication:
    Water treatment monitoring

    Drinking water,surface water,water quality analyze,ground water,ect.

    Industrial process monitoring and dosing control
    Chemical,petroleum,paper,food and medicine,PCB manufacturing,etc.

    FAQ
    Q1. Does the instrument have a self-diagnostic function and how does it prompt?

    A: The pH meter has self-diagnosis function.When the instrument is in calibration and maintenance,it can diagnose the PH/ORP sensor,if there is improper operation or poor PH/ORP sensor characteristics, the screen makes an image display and advises the user to re-maintain or replace the sensor.


    Q2. What are the special advantages of the pH instruments?
    A: The instrument can not only compensate the temperature of the test sample by connecting the temperature sensor, but also self-check the working temperature of the instrument in real time. When the working temperature of the instrument changes, the instrument compensates the hardware change caused by the temperature drift. Make the test results more accurate, this is a patented technology.


    Q3: Is there any stock?
    A: Yes,we have materials in stock to help you to get the samples as soon as we can


    Q4: How about warranty ?
    A: Warranty: 12 months, Lifetime maintenance


    Q5: Any discount?
    A : For bulk purchase or distribution agents, we will apply the best price for you,If we have any promotions, we will post in store and send you an email to inform you.
