Analog 0.00~10.00 MS/Cm Conductivity Controller For Pure Water

Suzhou Delfino Environmental Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Analog 0.00~10.00 MS/Cm Conductivity Controller For Pure Water from wholesalers

    Buy cheap Analog 0.00~10.00 MS/Cm Conductivity Controller For Pure Water from wholesalers
    • Buy cheap Analog 0.00~10.00 MS/Cm Conductivity Controller For Pure Water from wholesalers
    • Buy cheap Analog 0.00~10.00 MS/Cm Conductivity Controller For Pure Water from wholesalers
    • Buy cheap Analog 0.00~10.00 MS/Cm Conductivity Controller For Pure Water from wholesalers

    Analog 0.00~10.00 MS/Cm Conductivity Controller For Pure Water

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : ASC100
    Certification : CE, ISO
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000 Sets per Month
    Delivery Time : 5-25 days
    • Product Details
    • Company Profile

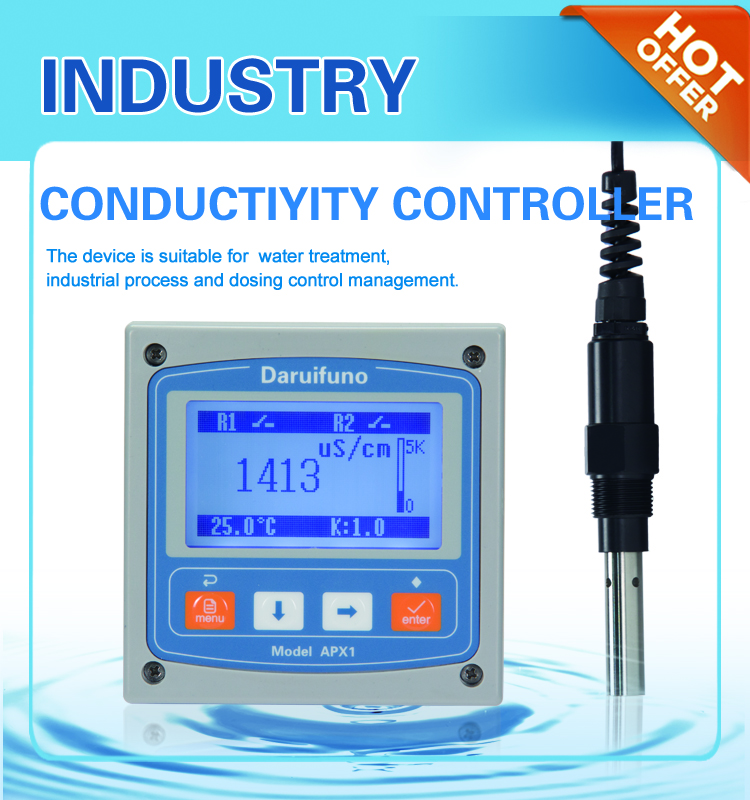

    Analog 0.00~10.00 MS/Cm Conductivity Controller For Pure Water

    Analog 0.00~10.00 mS/cm conductivity controller for Pure water


    Daruifuno's conductivity controller is matched with an analog conductivity sensor to calculate the conductivity of the solution by detecting the intensity of the current in the solution. At the same time, the instrument provides high-precision temperature measurement and compensation functions. In addition, the controller can also provide parameters such as resistivity, TDS, salinity and other related conductivity.

    Specification:

    ModelAEC1-C2A
    Software VersionDRFN EC Analysis software V1.0
    Display RangeEC0.00~10.00 mS/cm (Full range automatic switching)
    Resistivity0.01Ω.cm~18MΩ.cm
    TDS0.000mg/L~500g/L
    Salinity(0.00~10.0)%
    Display Range(Temp)-10~150℃ /14~302℉
    ResolutionEC0.01µS /cm
    Resistivity0.01Ω.cm
    TDS0.001mg/L
    Salinity0.1℃/ 0.1℉
    Accuracy0.1% of the measuring range
    Stability0.05% of the measuring range every 24 hours, no accumulation
    Repeatability0.1% better than the measuring range
    Temperature CompensationAutomatic or manual(NTC10K or PT1000)
    Relay OutputTwo SPST relays, maximum load 3A/250VAC
    CommunicationRS485 Modbus RTU
    Signal OutputTwo 0/4~20mA current outputs maximum load 1000Ω
    Sensor DiagnosisImage display
    Time history/data record——
    Maintenance records——
    ConfigurationPower failure protection, indefinite retention of parameters
    LanguageChinese and English
    Display128*64 3.2-inch large graphic dot matrix LCD
    Protection GradeIP66
    Enclosure MaterialEnhanced ABS
    Power SupplyAC: 100~240V
    Dimension100*100*120mm
    Hole Size92*92mm
    Operating Temperature0~60℃, RH<95%, non-condensing
    Storage Temperature-20~70℃, RH<55%, non-condensing
    Installation MethodPanel
    Weight500g
    Power Consumption3W

    Please click the user manual of conductivity controller here:

    Delfino Conductivity Controller Manual.pdf


    Brief introduction:

    ● 3.2-inch large LCD screen;
    ● User-friendly Chinese and English language interface;
    ● Password can be set to prevent misoperation;
    ● 2 SPST multi-function and settable relays;
    ● Two 0/4~20mA active current loop outputs;
    ● RS485 interface, Modbus RTU communication protocol;
    ● Temperature detection and compensation function;
    ● Shortcut button of AEC1 helps you perform daily maintenance quickly;
    ● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;
    ● Two dimensions, can meet a variety of installation methods, and provide the necessary installation accessories at the same time.


    Analog 0.00~10.00 MS/Cm Conductivity Controller For Pure Water
    Aplication:
    ◇ Pure water ultra pure water
    ◇ drinking water
    ◇ Waste water
    ◇ Food and beverage industry

    ◇ chemical process
    ◇ Industrial water supply

    FAQ
    1. Which sensors can be connected to your Conductivity controller?
    A: The conductivity meter can be compatible with DRFN analog conductivity sensors.


    2. Does the Conductivity controller have an ambient temperature alarm function?
    Our conductivity controller has ambient temperature alarm function

    4: How long is your delivery time?
    A: Generally it is 3 days if the goods are in stock. or within 20 days if the goods are not in stock, it is according to quantity.
