    Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : DUC2-SS-H-A
    Certification : CE, ISO
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000 Sets per Month
    Delivery Time : 5-25 days
    • Product Details
    • Company Profile

    Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring


    Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring


    Principles of Suspended Solids Detection

    The suspended matter in the water has a scattering effect on light, and the intensity of the scattered light has a certain proportional relationship with the concentration of the suspended matter, which can realize the quantitative analysis of the suspended matter.


    Specification:

    ModelDUC2-SS-H-A
    Software VersionDRFN SS(sludge concentration) Analysis software V1.0
    Sensor InputCompatible with all DRFN's SS(sludge concentration) Digital Sensors
    Display Range0.01mg/L~100g/L
    Resolution0.01mg/L
    Relay Control2 settable SPST relays with a maximum load of 3A/250VAC
    Analog Current Output2 settable 0/4~20mA current outputs with a maximum load of 1000Ω
    Communication Method

    Two-wire RS485 interface
    MODBUS RTU
    support JSON text data format

    OTA——

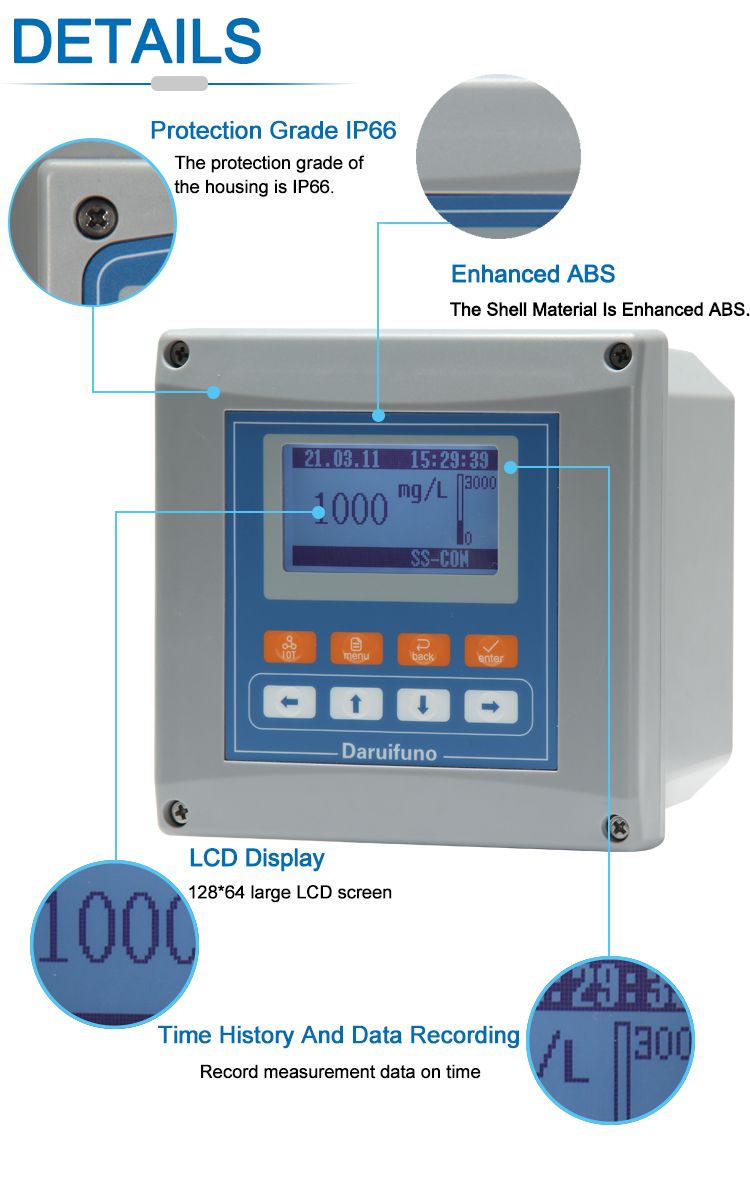

    Display Screen

    128*64 black-and-white graphic lattice LCD
    adjustable backlight mode
    adjustable display rate

    Configuration InformationPower off protection, parameters are retained indefinitely
    Time/Data Record

    Year/month/day/hour/min/second, record 14000 historical data
    record interval can be set between 1~999 minutes

    Maintenance RecordsLast 100 times
    Protection LevelIP66
    Operating Environment0~60℃,RH<95% ( no condensation)
    Storage Environment-20~70℃,RH<55% RH( no condensation, precision instruments)
    Shell MaterialEnhanced ABS
    Dimension144*144*120 mm
    Mounting MethodWall mounting, pipe clamping, panel installation (hole size 138*138 mm)
    Electrical InterfaceThe back end reserved 3 M12*1.5 Gram head, line diameter 3~6.5 mm
    Power Supply100~240VAC
    Power ConsumptionAbout 12W
    WeightAbout 800g

    Please click the catalog of RS485 SS sensor here:
    Daruifuno Catalog.pdf

    Brief introduction:

    ● Compatible with all DRFN digital suspended solids or sludge concentration sensors;
    ● Separately have a list of controller and sensor settings for quick and detailed parameter setting;
    ● The working status of the sensor can be queried, including reading the serial number;
    ● Support a variety of installation methods;
    ● Time and historical data recording function;
    ● 3.2-inch large LCD screen;
    ● User-friendly Chinese and English language interface;
    ● Password can be set to prevent misoperation;
    ● 2 SPST multi-function and settable relays;
    ● Two 0/4~20mA active current loop outputs;
    ● RS485 interface, Modbus RTU communication protocol;
    ● IP66 waterproof level, sealed enclosure can isolate pollution and corrosive gas;

    Online 100~240VAC Suspended Solids Controller For Wastewater Treatment Monitoring
    Aplication:

    ◇ Wastewater treatment plant
    ◇ Waterworks
    ◇ Surface water
    ◇ Semiconductor
    ◇ Environmental water treatment
    ◇ Paper industry
    ◇ Mining
    ◇ Metallurgical Electronics


    FAQ

    1. What are the advantages of a digital SS meter?
    A: The digital universal controller is matched with the corresponding digital sensor to realize the measurement. Compared with the traditional instrument and sensor combination, the biggest advantage is that the data transmitted from the sensor to the controller is more stable and accurate, the application is flexible, and the use is more convenient.

    2. How does this suspended solids controller collect data?
    A: This digital suspended solids meter is a single-parameter universal controller. Each controller will be pre-installed with a set of embedded software to correspond to different sensors. These connected sensors upload the detected data with a special encrypted communication method to ensure that the controller can collect high-precision data more stably. The controller will display the collected data on the display screen in real time, which is convenient for users to read.
    3. What are the applications of digital suspended solids analyzers?
    A: The digital SS analyzers are widely used in wastewater treatment plant, waterworks, surface water, semiconductor, environmental water treatment, paper industry, mining, metallurgical electronics.
