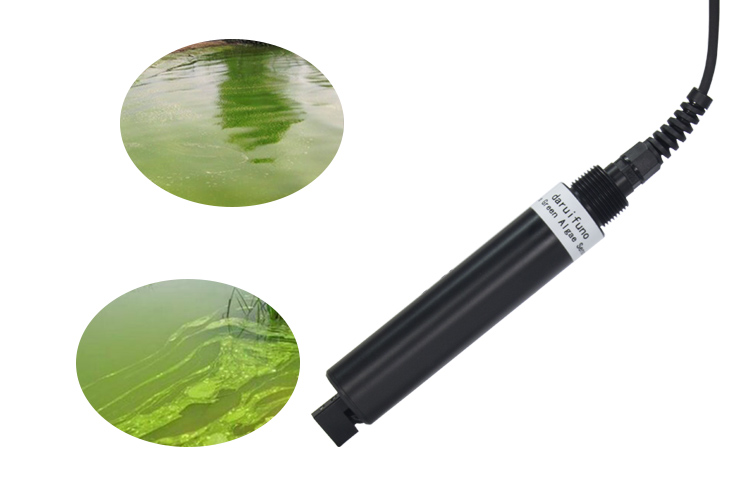

    Online Digital Blue Green Algae Sensor IP68 For Surface Water

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : BGA351
    Certification : CE
    Price : $1250
    Supply Ability : 20 pieces per month
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    Online Digital Blue Green Algae Sensor IP68 For Surface Water

    Reliable Supplier Online Digital Blue Green Algae Sensor For Surface Water


    Reliable Supplier Blue Green Algae Sensor For Surface Water


    The blue-green algae sensor developed and produced by delfino can monitor the blue-green algae in the water body and play an early warning role for the growth of algae.


    It adopts the principle of fluorescence, which is more efficient and convenient than the traditional manual counting method, and can realize online monitoring.


    specification


    Product NameBlue-green algae sensor
    Product ModelBGA351
    Measuring PrincipleFluorescence method
    Measure Range0-200.000 cells/mL
    The Detection Limit300 cells/mL
    Resolution1 cells/mL
    LinearityR²>0.999
    AssemblyInvestment
    Temperature Range0°C ~50°C
    Deepest depth10 meters underwater
    DimensionsDiameter 45mm, length 180mm
    Sensor InterfaceSupport RS485, Modbus protocol
    Power InformationDC 5~12V, current <50mA (when not cleaning)
    MaterialPOM (customized)
    Cable LengthDefault 10m(custom)
    Cleaning BrushHave

    Advantages


    Excellent repeatability and stability


    Automatic cleaning brush to eliminate air bubbles and reduce contamination


    Long maintenance period


    RS485 communication, support Modbus protocol


    Continuous monitoring, real-time control of water quality dynamics



    Application


    It is suitable for surface water, especially landscape water, source water and the import of the waterworks.

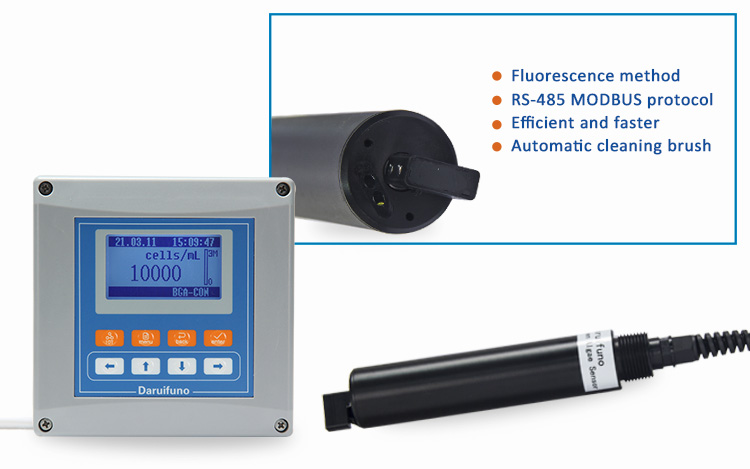

    This sensor can be used with our controller DUC2-BGA.


    Product NameBlue-green Algae Tester
    Product ModelDUC2-BGA-H-D
    Software VersionDRFN BGA analysis software V1.0
    Display Range0-3000000 cells/mL
    Resolution1 cells /mL
    Relay Control2 settable SPST relays max. load 3A/250VAC
    Analog Current Output2 settable 0/4~20mA active current loop output max. load 1000Ω
    Communication MethodTwo-wire RS485 interface; MODBUS RTU; support JSON text data format
    Display Screen128*64 LCD
    Time History/Data RecordYear/month/day/hour/min/second, record 14000 historical data
    Protection LevelIP66
    Operating Environment0~60℃, relative humidity less than 95% (no condensation)
    Storage Environment-20~70℃, relative humidity less than 55% (no condensation)
    Shell MaterialEnhanced ABS
    Size144*144*120mm (hole size 138*138 mm)
    Mounting MethodWall mounting, pipe clamping, panel mounting
    Power Supply18-36V DC
    Weight800g
    Power Consumption7W

    About Blue-green algae


    Blue-green algae (BGA), also known as cyanobacteria, can range in colors from blues, greens, reds, and black. BGA can reduce nitrogen and carbon in water, but can also deplete dissolved oxygen when overabundant. Monitoring BGA is important because they pose a serious threat to water quality, ecosystem stability, surface drinking water supplies, and public health through toxin production and the large biomass produced in algal blooms.
