NTC10K/PT1000 RS485 4-20mA pH ORP Meter Controller For Water

The APX1-G2 pH/ORP controller from Dreifenol connects to a variety of conventional pH/T or ORP combination sensors. The APX series of industrial on-line pH/ORP controllers not only meet the continuous measurement and display function, but also achieve signal output and control functions. There are a variety of output configurations to choose from to meet the different needs of low cost and high performance.

Advantages of pH/ORP controller:

• pH glass electrode measurement method
• Two configurable SPST multifunction relays
• With 2 high-precision 0/4-20mA current output
• 3.2 inch LCD screen, rich content
• 1 two-wire RS485 communication interface
• Support solution grounding, which can eliminate part of the solution leakage interference
• AC and DC power modes, both wide voltage
• Housing material reinforced ABS, protection class IP66

pH ORP controller Parameters:

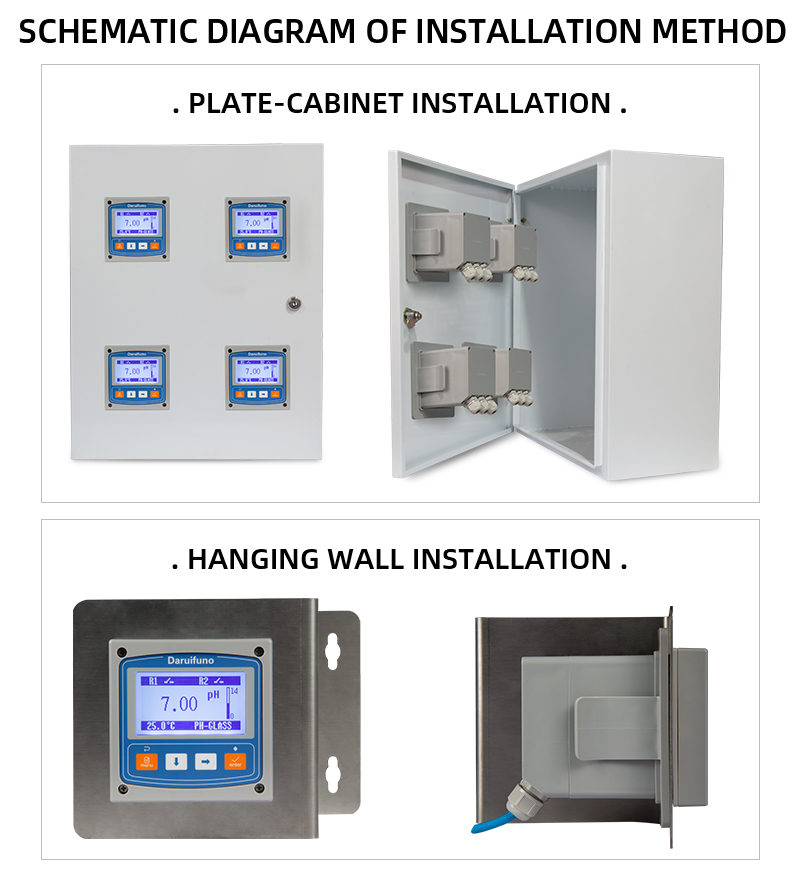

PH ORP controller installation

The pH/ORP controllersupports a variety of mounting modes and comes with the necessary mounting accessories. The pH/ORP controller (APX1-C1Z) can be installed in a cabinet or on a wall. The controller can be mounted on the built-in support frame in two ways. In the first cabinet installation method, place a desktop in the cabinet, open the desktop, and secure the desktop to the rear of the cabinet using a support frame. The second kind of wall hanging installation, according to the gap distance of wall hanging metal bracket holes, punch two screws in the wall, put the table on the metal bracket and fixed with the support frame, the installation is complete.

pH ORP controller Applications:

In real life production, the control of pH value (pH) is a very important process. At the same time, with the strengthening of human awareness of environmental protection, the national requirements for environmental protection are becoming higher and higher, more and more attention, the control of wastewater discharge in the process of industrial production is more and more strict, a variety of biochemical indicators are included in the supervision, pH value is one of the very important indicators; If the pH value is too acidic or too alkaline discharged into the rivers, lakes and seas, it will cause irreversible impact on the water body and water ecology. The traditional manual pH value monitoring will gradually be replaced by automatic control because of the time and power consumption, and the control precision cannot be guaranteed. At the same time automatic control because of the use of high precision, long life pH meter to measure the pH value, so the control accuracy will reach a new height, conducive to pharmaceutical, chemical, electroplating and other factories in the production monitoring.

If you are interested in the product PH ORP controller APX1-G2, please contact us.
