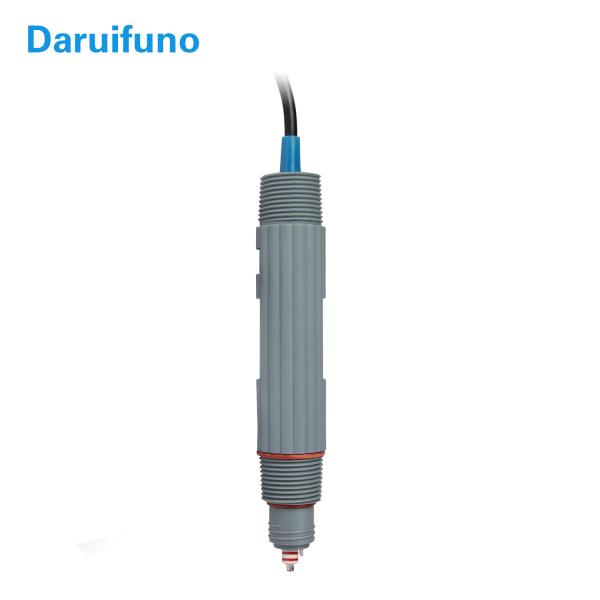

Industrial Rs485 Online Water Orp PH Sensor/PH Probe/PH Electrode

DRFN pH sensor:ASP300-VYD05 adapt the silver/silver chloride (Ag/AgCl) system.

Because silver is non-toxic to humans, Ag/AgCl sensor can also be used in medicine and food technology where poisonous mercury and thallium systems are prohibited.

Disposal is also less critical with Ag/AgCl than with thallium and mercury.

Ag/AgCl has a wide range of applications with respect to temperature (up to 140°C) and is therefore also suitable for sterilizable sensor. Most YSI electrodes feature a Ag/AgCl reference system.

Specification:

Please click the pH sensor user manual here:

PH sensor User Manual.pdf

Brief introduction:

◆ pH composite electrode, the body adopts reinforced ABS plastic shell encapsulation, the structure is firm, there are installation threads at the beginning and the end, and the installation is convenient;
◆ The electrode is equipped with a protective cover with its own cleaning interface, and the user can quickly access the automatic cleaning system;
◆ The electrode is divided into 3 basic models according to the packaging method of the temperature unit;
◆ The indicator electrode adopts a low-impedance hemispherical glass head, which has high strength and is not easily broken;
◆ The reference adopts a large-area annular porous Teflon membrane, which has fast penetration speed, fast response, not easy to block, and easy to clean;
◆ The reference system is designed with double salt bridge, the reference electrode is Ag/AgCl, filled with KCL solid gel.

◆ Signal output: RS485 (Modbus / RTU protocol).
◆Easy to install: 3/4-inch NPT thread (pipe thread), easy to install in the pipeline and tank. The probe and display section can be separated and connected by acable.
◆ IP68 degree of protection.

Aplication:

Water treatment monitoring

Drinking water,surface water,water quality analyze,ground water,ect.

Industrial process monitoring and dosing control

Chemical,petroleum,paper,food and medicine,PCB manufacturing,etc.

FAQ

1. What is themeasurement principle of this pH electrode?
A: The pH value potentiometric method uses the potential difference of glass electrodes for pH measurement.

2. How is this glass pH electrode composed?
A: The pH electrode is usually composed of an indicator electrode and a reference electrode.

3. How to judge the pH of the solution?
A: If the internal hydrogen ion concentration of the pH glass bulb is lower than the outside, the measured solution is recorded as acidic and the pH value is lower than 7; if the two are the same, the solution is neutral and the pH value is equal to 7; if the internal hydrogen ion concentration is higher than externally, the measured solution is alkaline and the pH value is higher than 7.

4. What is the wire length of the pH electrode?
A: The lead wire of this electrode is 5m by default, other lengths need to be customized, contact our customer service, the price will vary with the change of length.

Suzhou Delfino Environmental Technology Co., Ltd. is a professional manufacturer of water analysis instruments and sensors, integrating development and production together. Our main products include online, portable water quality analysis instruments. Since its establishment, we have focused on the development and production of water quality analysis instruments.

The monitoring parameters of water quality analyzer instruments mainly include: pH, ORP, dissolved oxygen, conductivity/TDS/salinity, turbidity, SS, Chlorophyll, Blue-green algae, COD, NH4-N, NO3, free chlorine, peracetic acid and so on.

As the rapid growth of the global economy leads to increased consumption and urbanization, solid waste generation has increased significantly, directly affecting the water and wastewater treatment industry. Daruifuno aims to provide solutions to various industries and fields and create a cleaner and healthier drinking water environment for the earth.

Our products mianly application for follows industry：Municipal sewage water treatment plant, industrial wastewater treatment plant, Chemical, Petroleum, Papermaking, Food and drinking, Medicine, Electroplating, PCB plant, fish farm,Lake/river/ocean/groundwater/surface and so on.

Our company was established in 2015, but our predecessor has been committed to the water quality testing industry for more than 10 years. At present, we have our own R&D center with many senior engineers with more than 10 years of experience in the research and development of water quality analyzers and water quality sensors, and are equipped with strict front-line production workers, professional quality inspection personnel and testing equipment to check every process.

As a high-tech enterprise in China, our production is strictly in accordance with ISO9001 from raw material sources to finished equipment. After years of efforts, the company has obtained more than 20 patent certificates, high-tech enterprise certificates, CE, SGS, etc. He has accumulated rich practical experience in the field of water quality testing and has unique insights in the field of water quality testing.

Our company takes "reasonable prices, efficient production time, and good after-sales service" as its purpose and adheres to the business philosophy of "based on quality and creating value for customers". At present, the company is actively exploring the international market and actively promoting its own brands and products. It has been exported to Asia, Southeast Asia, Europe, Africa, and South America, with customers in more than 50 countries and regions around the world. And hope to develop together with customers for mutual benefit with high-quality products and sincere services.
